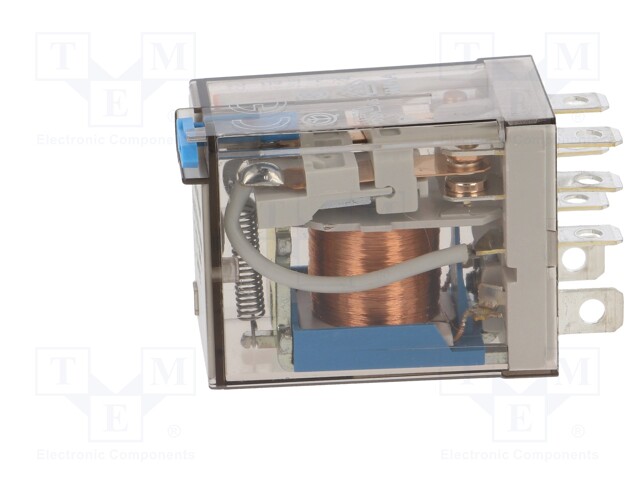

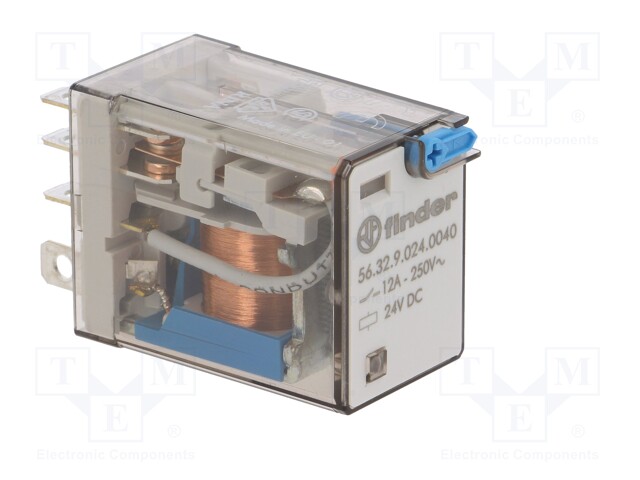

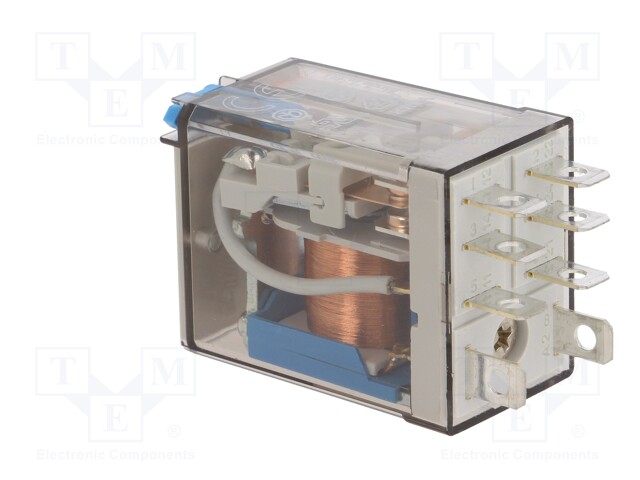

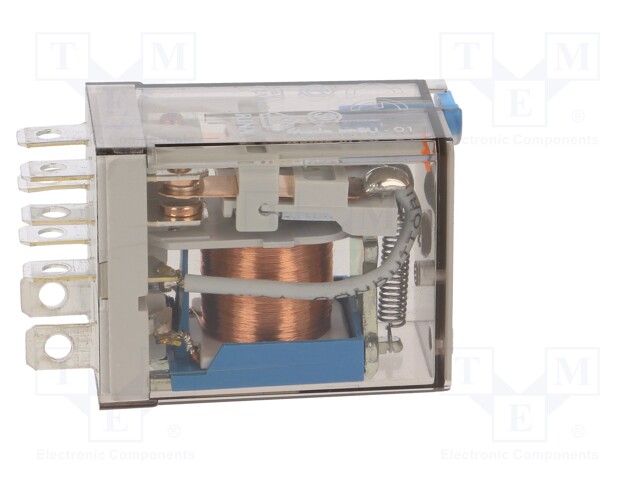

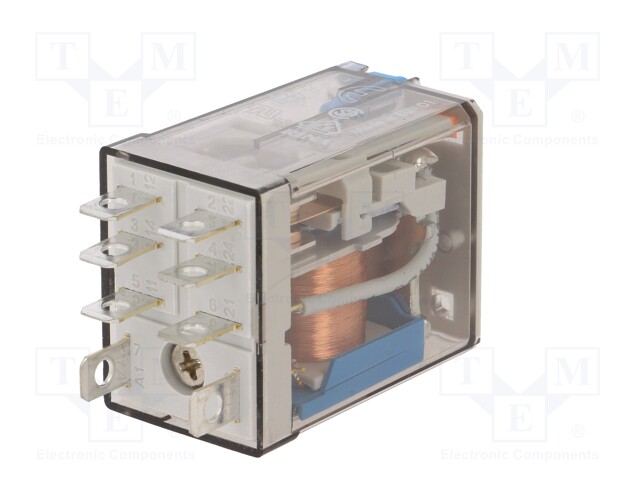

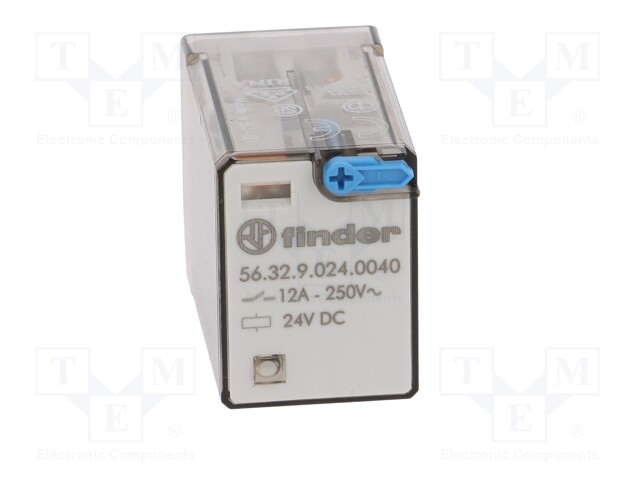

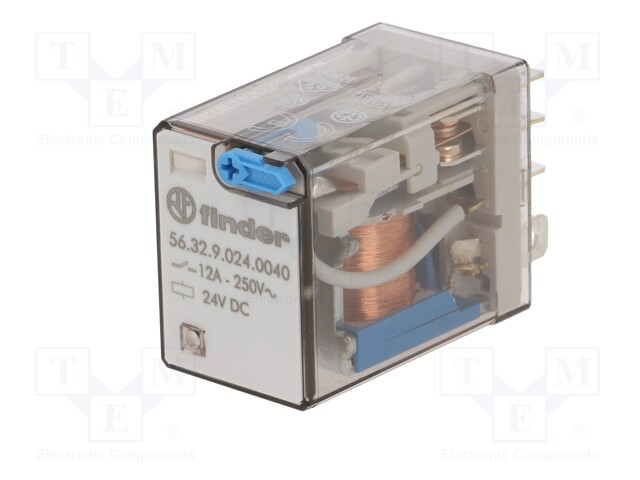

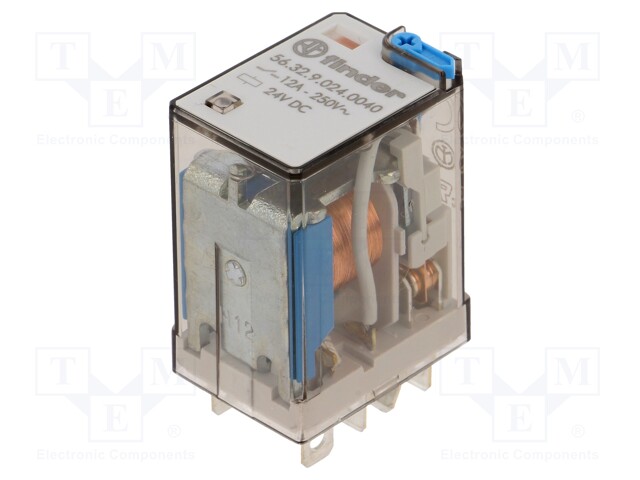

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 56.32.9.024.0000
    Manufacturer: FINDER
    Manufacturer code: 56.32.9.024.0000
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    16.55 € 16.55 € (wo VAT) 16.55 EUR

    16.55 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads 4,8x0,5mm connectors
    Contact material AgNi
    Body dimensions 27.7x20.7x37.7mm
    Switched voltage max. 220V DC, max. 400V AC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1W
    Relay series 56.32
    Coil current 40mA
