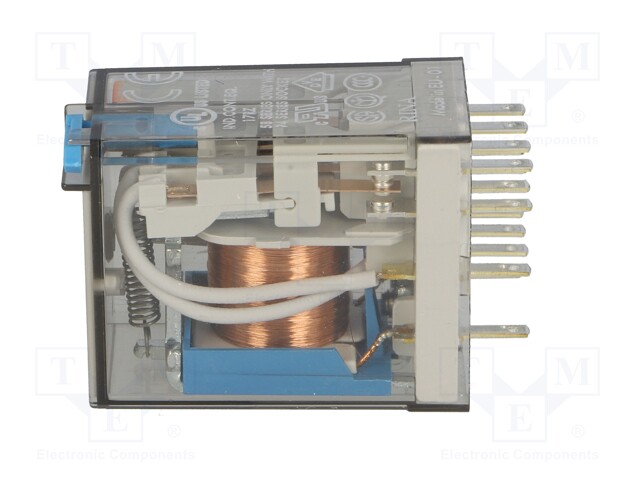

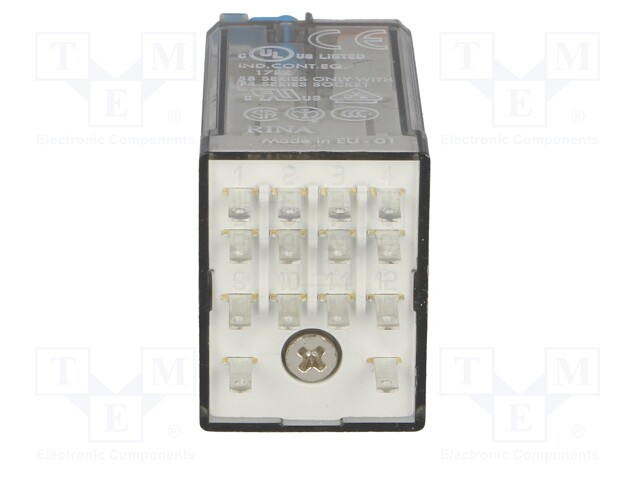

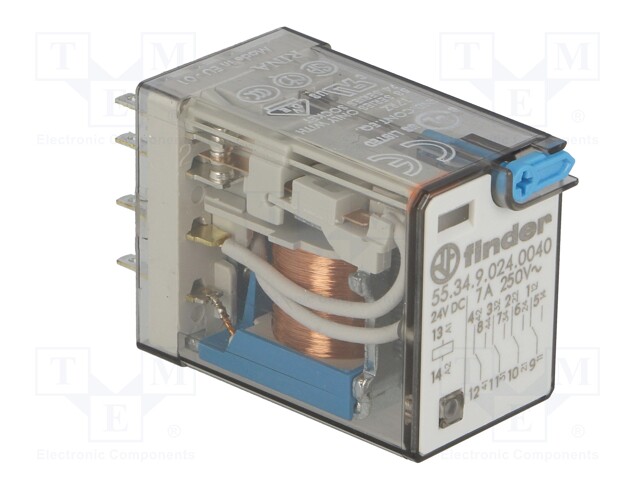

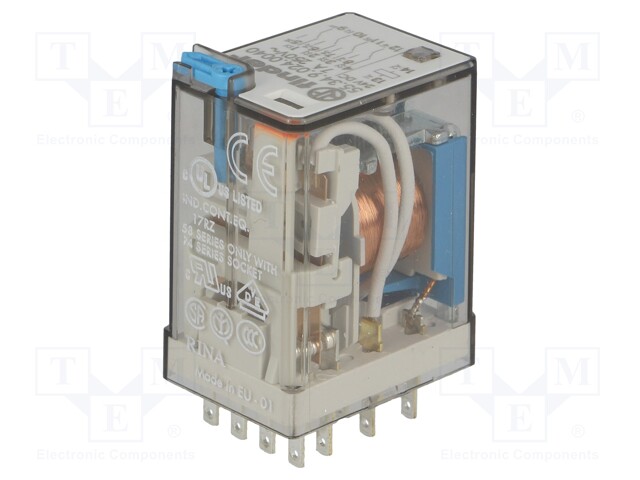

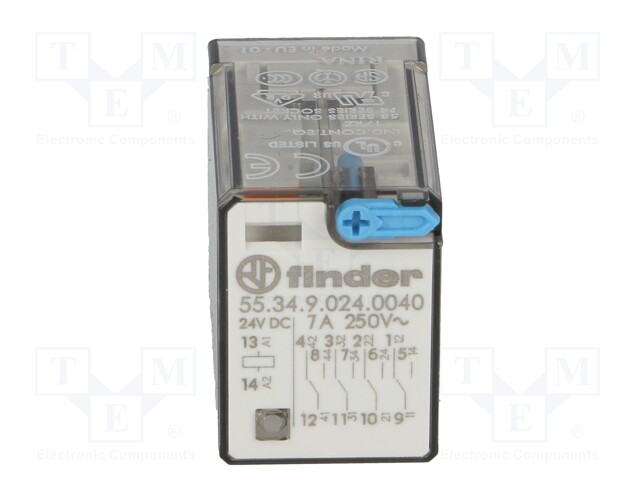

Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 7A/250VAC; 7A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 55.34.9.024.0040
    Manufacturer: FINDER
    Manufacturer code: 55.34.9.024.0040
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    14.83 € 14.83 € (wo VAT) 14.83 EUR

    14.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 4PDT; Ucoil: 24VDC; 7A/250VAC; 7A/30VDC

    Mounting socket
    Operating temperature -40...85°C
    Contact material AgNi
    Body dimensions 27.7x20.7x35.8mm
    Switched voltage max. 220V DC, max. 250V AC
    Rated coil voltage 24V DC
    Contacts configuration 4PDT
    DC contacts rating @R 7A / 30V DC
    AC contacts rating @R 7A / 250V AC
    Contact current max. 15A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1W
    Relay series 55.34
    Coil current 40mA
