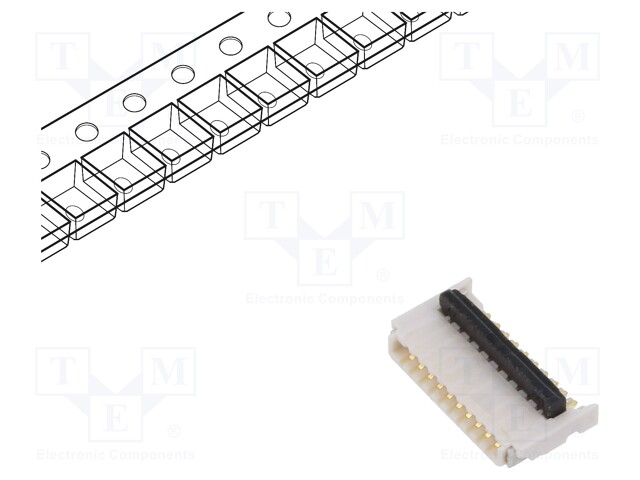

503480-1000

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: 503480-1000-2
    Manufacturer: MOLEX
    Manufacturer code: 503480-1000
    • Operating temperature
    • Electrical mounting
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Current rating
    • Rated voltage
    • Ribbon cable pitch
    • Connector variant
    • Connector variant
    • Connector variant
    • Spatial orientation

    1.01 € 1.01 € (wo VAT) 1.01 EUR

    1.01 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for 503480-1000

    Operating temperature -40...85°C
    Electrical mounting SMT
    Contact plating gold-plated
    Type of connector FFC (FPC)
    Number of pins 10
    Contact material phosphor bronze
    Body material LCP
    Flammability rating UL94V-0
    Current rating 500mA
    Rated voltage 50V
    Ribbon cable pitch 500µm
    Connector variant bottom contacts, top contacts, ZIF
    Spatial orientation horizontal
