Relay: electromagnetic; miniature

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 36.11.9.018.4011
    Manufacturer: FINDER
    Manufacturer code: 36.11.9.018.4011
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

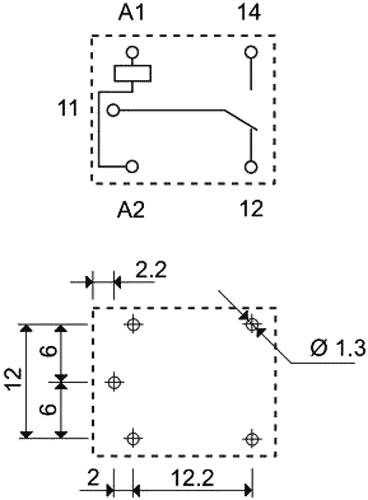

    Specification for Relay: electromagnetic; miniature

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Body dimensions 19x15.5x15.5mm
    Switched voltage max. 220V DC, max. 250V AC
    Rated coil voltage 18V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
    Relay series 36.11
