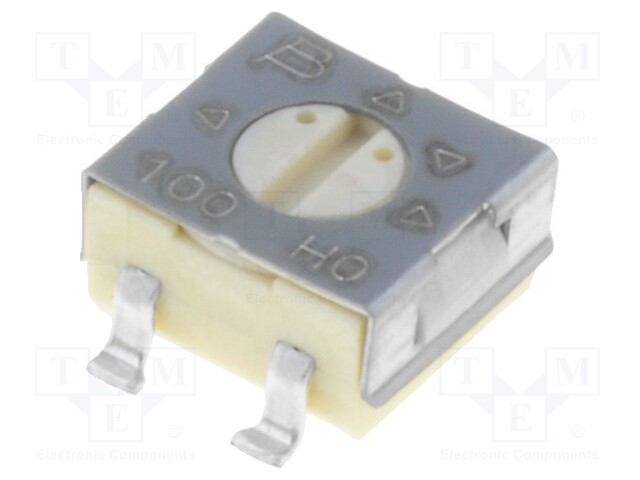

Potentiometer: mounting; single turn,horizontal; 100Ω; 250mW; SMD

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3314G-1-101E
    Manufacturer: BOURNS
    Manufacturer code: 3314G-1-101E
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Temperature coefficient

    2.34 € 2.34 € (wo VAT) 2.34 EUR

    2.34 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,horizontal; 100Ω; 250mW; SMD

    Mounting SMD
    Power 250mW
    Resistance 100Ω
    Operating temperature -55...125°C
    Tolerance ±20%
    Terminal pitch 2.3x5mm
    Body dimensions 4.5x4.5x2.55mm
    Kind of potentiometer horizontal, single turn
    Type of potentiometer mounting
    Track material cermet
    Characteristics linear
    Mechanical rotation angle 240°
    Temperature coefficient 100ppm/°C
