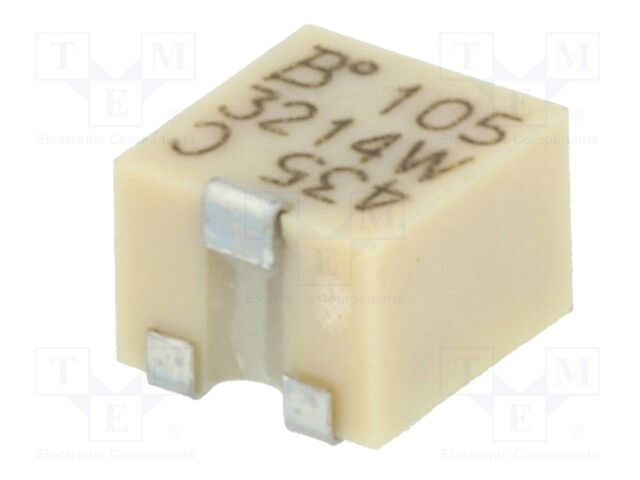

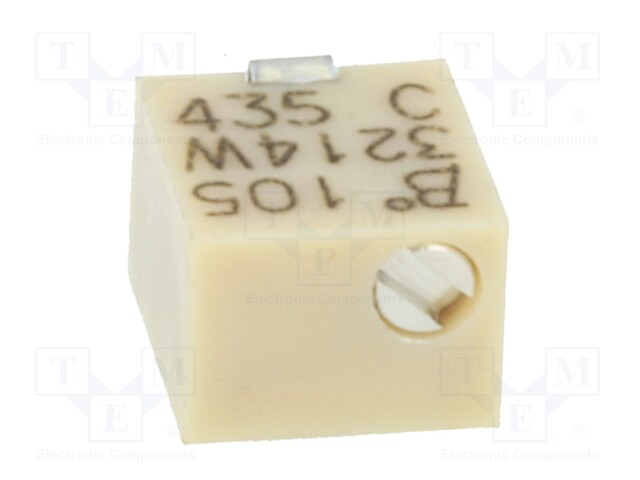

Potentiometer: mounting; vertical,multiturn; 1MΩ; 250mW; SMD; ±10%

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3214W-1-105E
    Manufacturer: BOURNS
    Manufacturer code: 3214W-1-105E
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Body dimensions
    • Kind of potentiometer
    • Kind of potentiometer
    • Number of electrical turns
    • Type of potentiometer
    • Track material
    • Characteristics
    • Temperature coefficient

    5.57 € 5.57 € (wo VAT) 5.57 EUR

    5.57 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; vertical,multiturn; 1MΩ; 250mW; SMD; ±10%

    Mounting SMD
    Power 250mW
    Resistance 1MΩ
    Operating temperature -65...150°C
    Tolerance ±10%
    Body dimensions 4.8x4.6x3.7mm
    Kind of potentiometer multiturn, vertical
    Number of electrical turns 5
    Type of potentiometer mounting
    Track material cermet
    Characteristics linear
    Temperature coefficient 100ppm/°C
