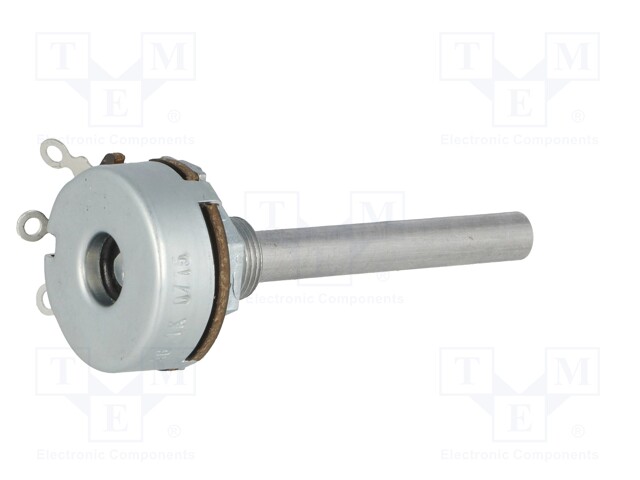

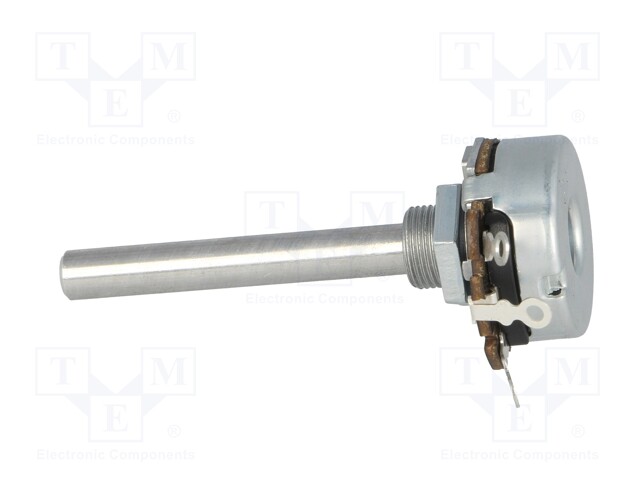

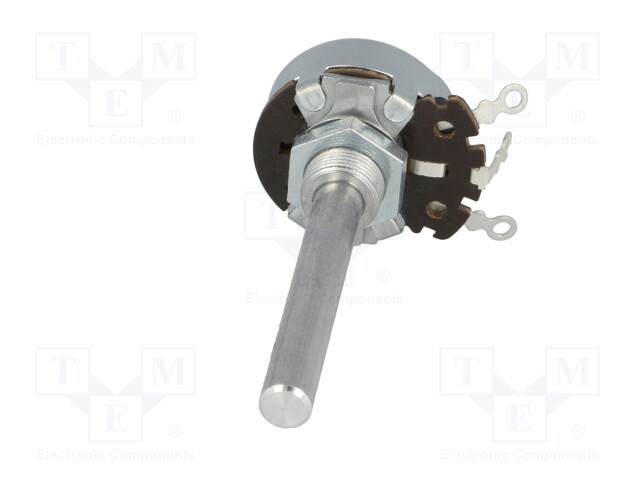

Potentiometer: shaft; single turn; 1kΩ; 4W; ±10%; 6mm; Shaft: smooth
Multiples:
1.0
Minimum quantity:
1.0
Product code:
3104605994
Manufacturer: AB Elektronik
Manufacturer code: 3104605994
Product downloads
Specification for Potentiometer: shaft; single turn; 1kΩ; 4W; ±10%; 6mm; Shaft: smooth
Power | 4W |
Resistance | 1kΩ |
Tolerance | ±10% |
Fastening thread | M10x0,75 |
Max. operating voltage | 500V DC |
Shaft length | 42mm |
Shaft diameter | 6mm |
Shaft surface | smooth |
Thread length | 8mm |
L shaft length | 50mm |
Kind of potentiometer | single turn |
Type of potentiometer | shaft |
Track material | wirewound |
Characteristics | linear |
Mechanical rotation angle | 300 ±10° |
Electrical rotation angle | 280 ±5° |
