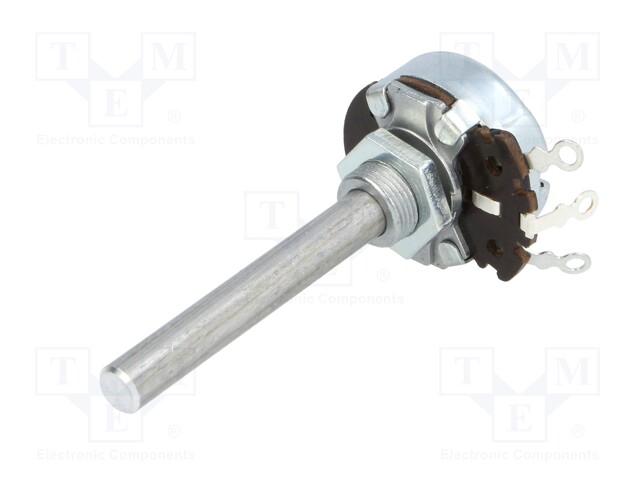

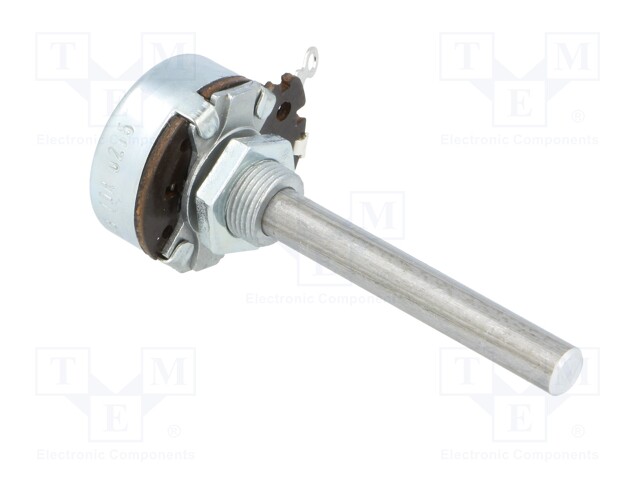

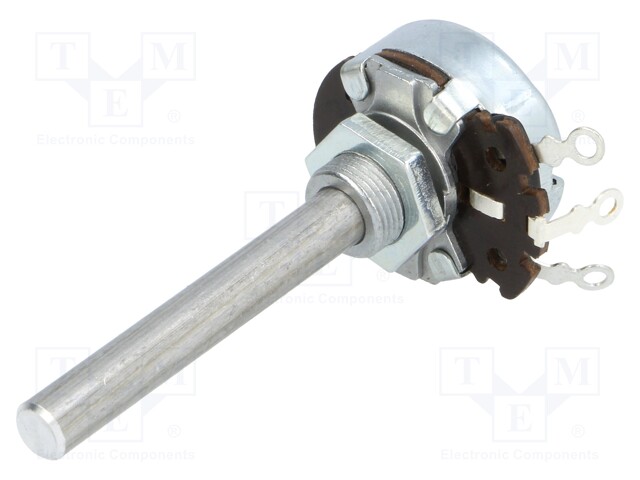

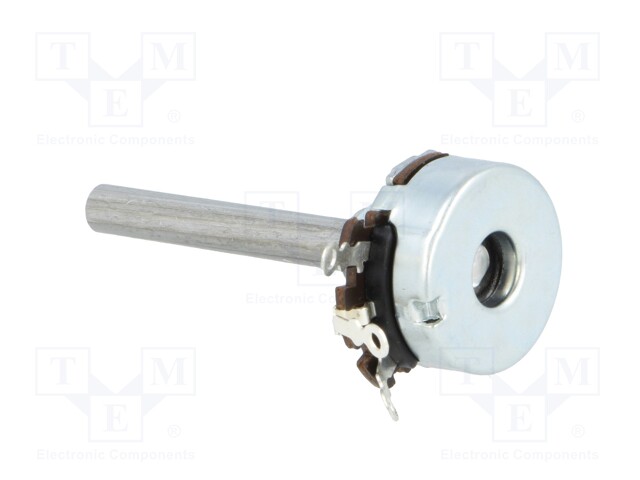

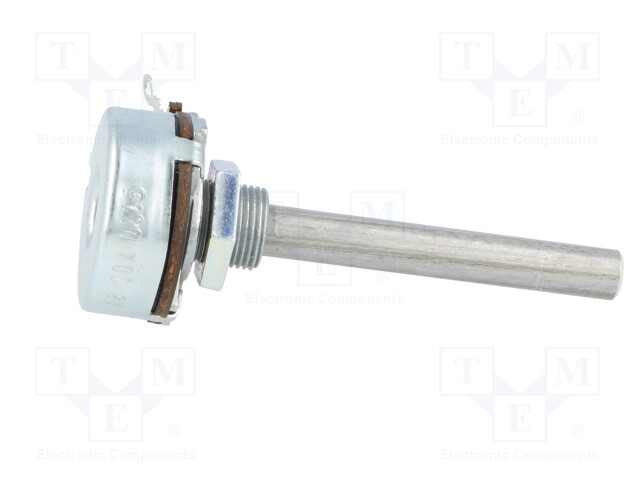

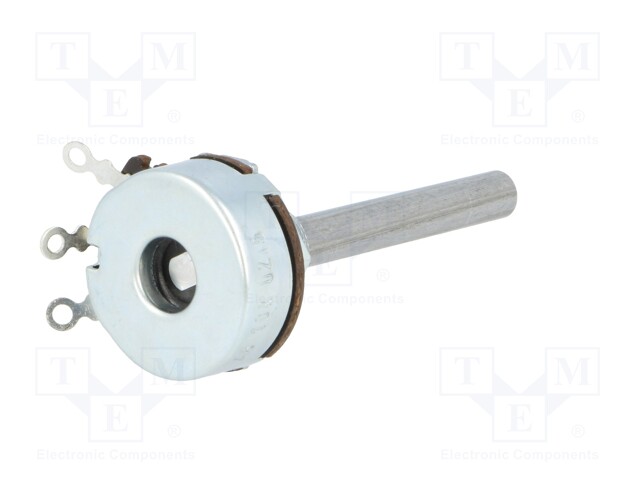

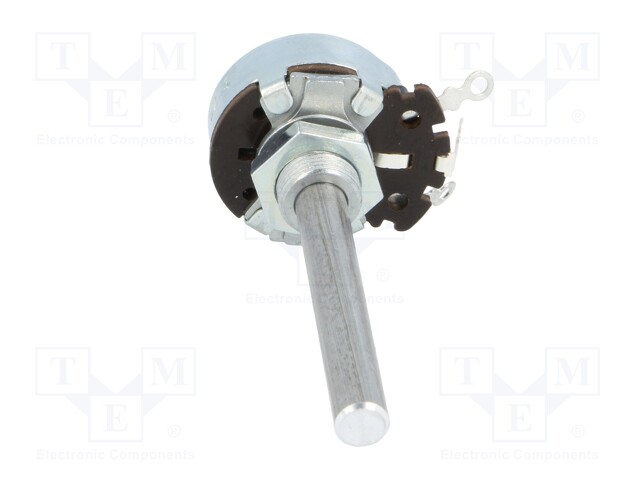

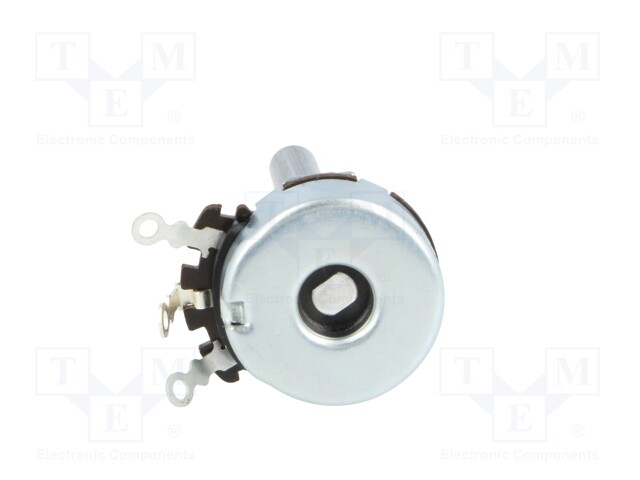

Potentiometer: shaft; single turn; 10Ω; 4W; ±20%; 6mm; Shaft: smooth

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3104601738
    Manufacturer: AB Elektronik
    Manufacturer code: 3104601738
    • Power
    • Resistance
    • Tolerance
    • Fastening thread
    • Max. operating voltage
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Electrical rotation angle

    13.64 € 13.64 € (wo VAT) 13.64 EUR

    13.64 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 10Ω; 4W; ±20%; 6mm; Shaft: smooth

    Power 4W
    Resistance 10Ω
    Tolerance ±20%
    Fastening thread M10x0,75
    Max. operating voltage 500V DC
    Shaft length 42mm
    Shaft diameter 6mm
    Shaft surface smooth
    Thread length 8mm
    L shaft length 50mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material wirewound
    Characteristics linear
    Mechanical rotation angle 300 ±10°
    Electrical rotation angle 280 ±5°
