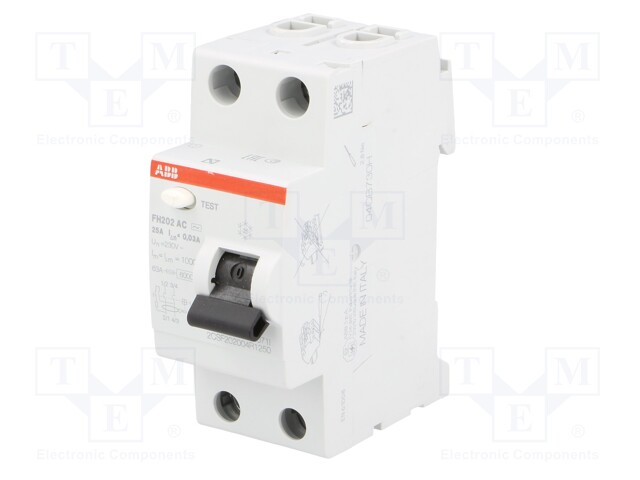

RCD breaker; Inom: 25A; Ires: 30mA; Max surge current: 250A; 230V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2CSF202002R1250
    Manufacturer: ABB
    Manufacturer code: 2CSF202002R1250
    • Mounting
    • Operating temperature
    • IP rating
    • Mechanical durability
    • Current rating
    • Rated voltage
    • Electrical life
    • Max surge current
    • Conform to the norm
    • Cross section of connecting wires
    • Type of protection
    • Short circuit breaking capacity
    • Kind of circuit breaker
    • Residual current

    31.78 € 31.78 € (wo VAT) 31.78 EUR

    31.78 €

    This combination does not exist.

    Add to Cart

    Specification for RCD breaker; Inom: 25A; Ires: 30mA; Max surge current: 250A; 230V

    Mounting for DIN rail mounting
    Operating temperature -5...40°C
    IP rating IP20
    Mechanical durability 20000cycles
    Current rating 25A
    Rated voltage 230V AC
    Electrical life 10000cycles
    Max surge current 250A
    Conform to the norm IEC/EN 61008
    Cross section of connecting wires 1...25mm<sup>2</sup>
    Type of protection RCD breaker
    Short circuit breaking capacity 6kA
    Kind of circuit breaker type AC
    Residual current 30mA
