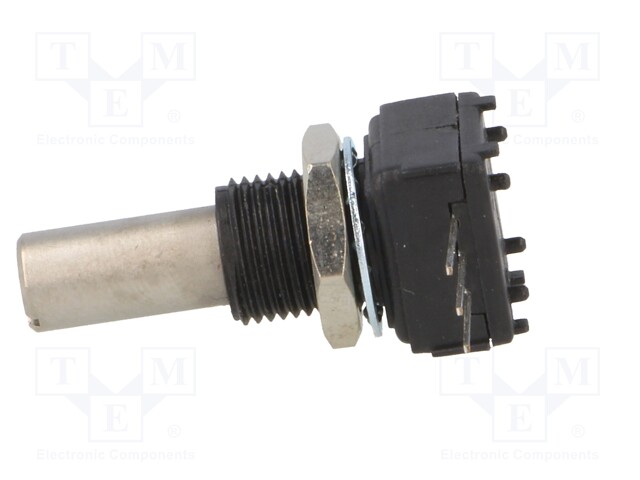

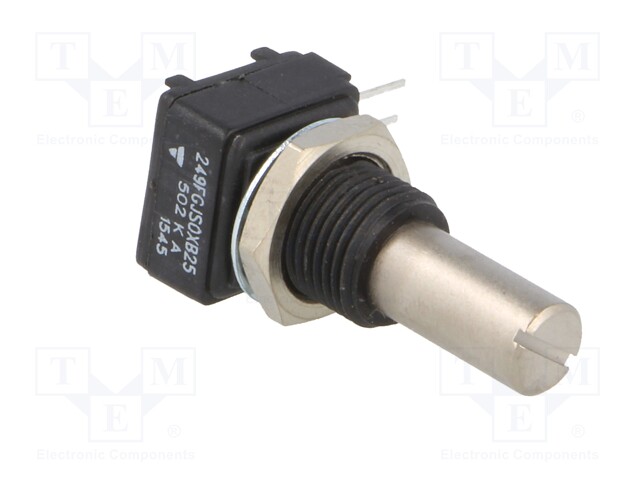

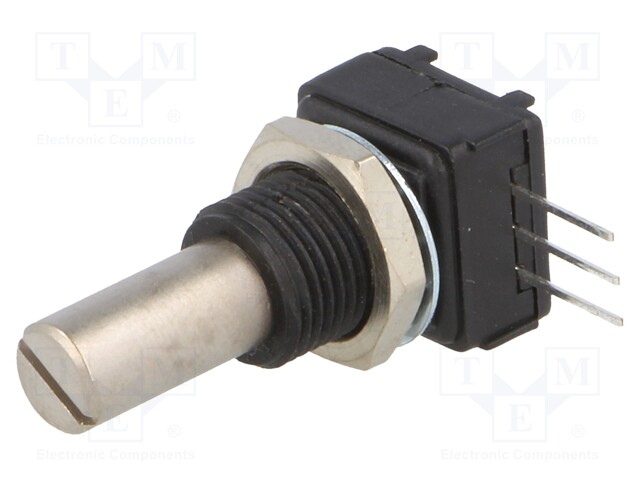

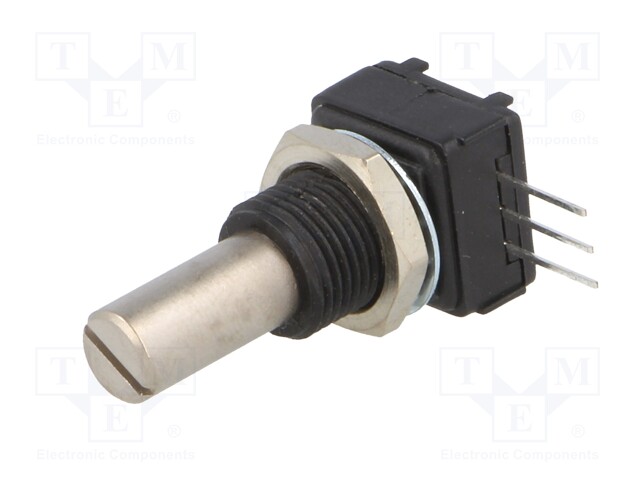

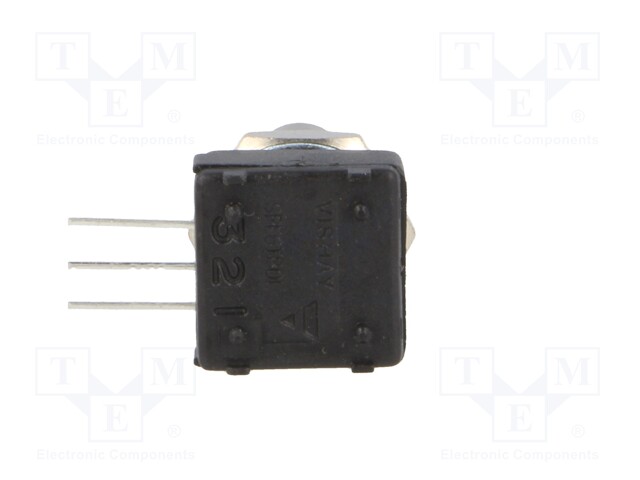

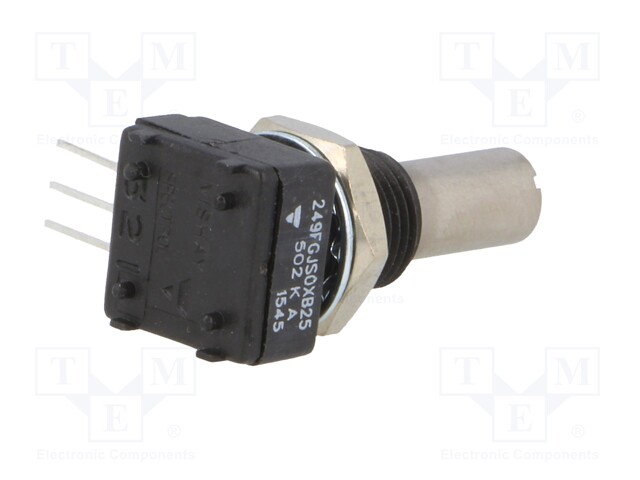

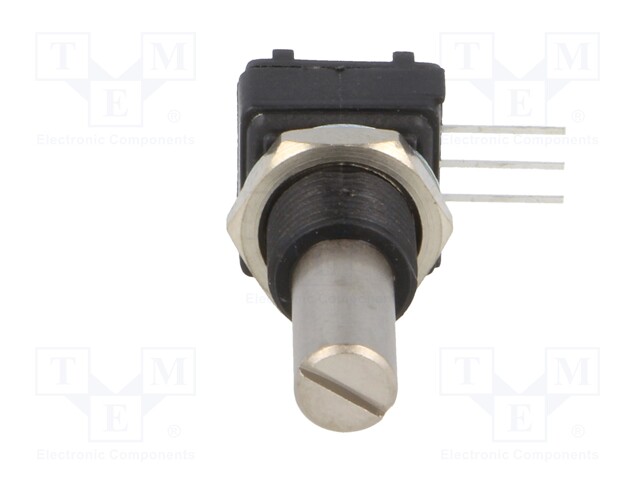

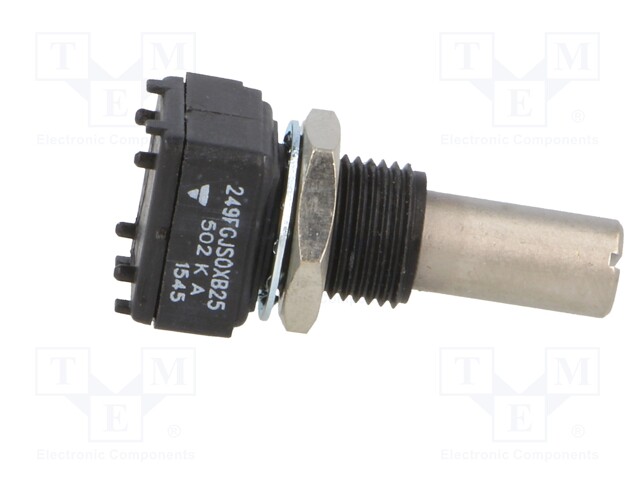

Potentiometer: shaft; 5kΩ; 1W; ±10%; 6.35mm; THT; Shaft: smooth

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 249FGJS0XB25502KA
    Manufacturer: VISHAY
    Manufacturer code: 249FGJS0XB25502KA
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Max. operating voltage
    • Shaft diameter
    • Shaft surface
    • Type of potentiometer
    • Track material
    • Temperature coefficient
    • Electrical rotation angle
    • Potentiometer series

    18.33 € 18.33 € (wo VAT) 18.330000000000002 EUR

    18.33 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; 5kΩ; 1W; ±10%; 6.35mm; THT; Shaft: smooth

    Mounting THT
    Power 1W
    Resistance 5kΩ
    Operating temperature -55...125°C
    Tolerance ±10%
    Max. operating voltage 300V AC
    Shaft diameter 6.35mm
    Shaft surface smooth
    Type of potentiometer shaft
    Track material cermet
    Temperature coefficient 100ppm/°C
    Electrical rotation angle 265°
    Potentiometer series 249
