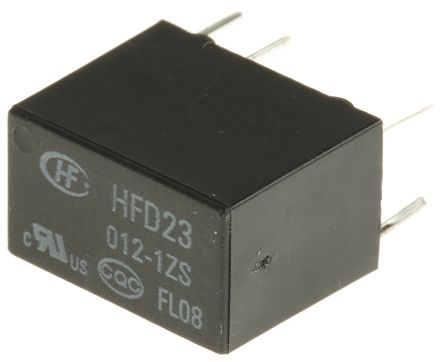

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 22003020
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFD23/012-1ZS
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.68 € 0.68 € (wo VAT) 0.68 EUR

    0.68 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgNi + Au
    Terminal pitch 2.54mm
    Body dimensions 12.5x7.5x10mm
    Switched voltage max. 60V DC, max. 125V AC
    Coil resistance 960Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 150mW
