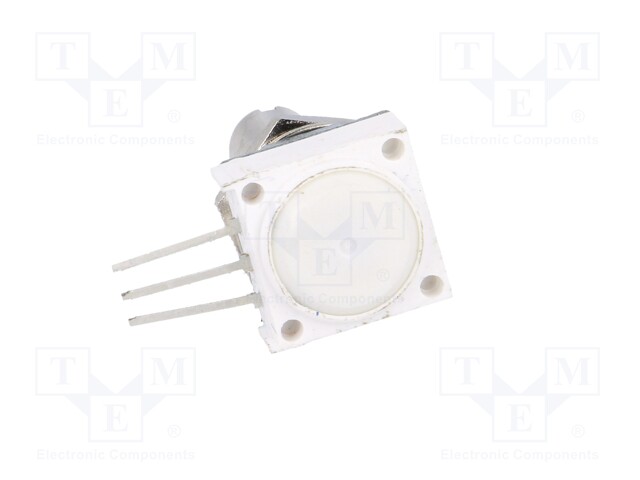

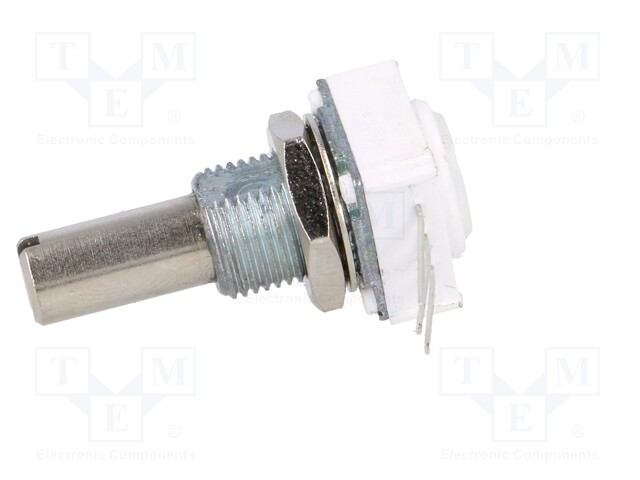

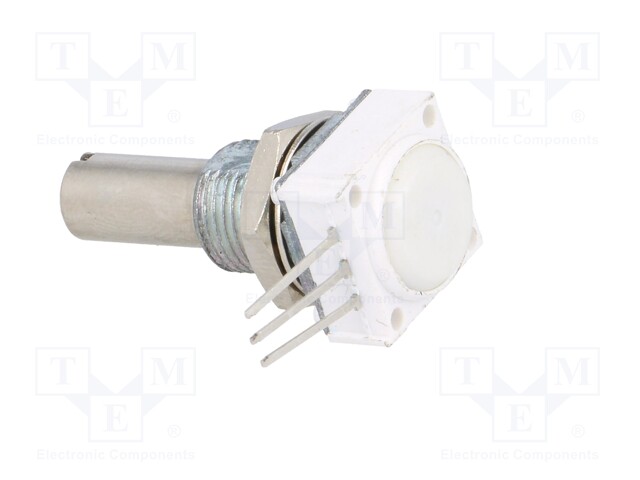

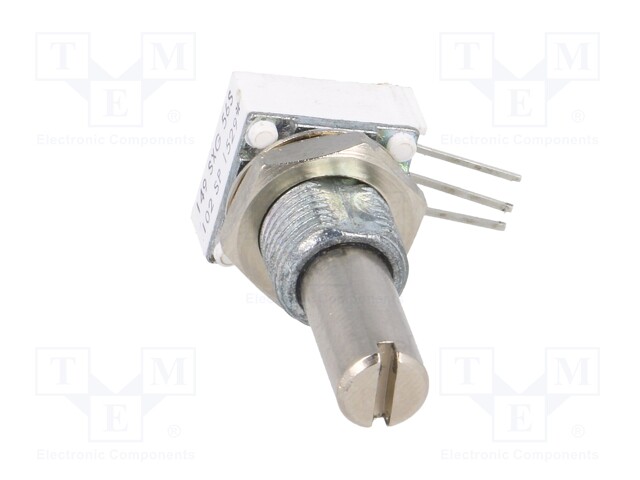

Potentiometer: shaft; single turn; 1kΩ; 1W; ±10%; 6.35mm; THT

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 14910F0GJSX10102KA
    Manufacturer: VISHAY
    Manufacturer code: 14910F0GJSX10102KA
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Body dimensions
    • Max. operating voltage
    • Electrical life
    • Shaft diameter
    • Shaft surface
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Temperature coefficient
    • Potentiometer standard
    • Electrical rotation angle
    • Potentiometer features
    • Potentiometer series

    21.22 € 21.22 € (wo VAT) 21.22 EUR

    21.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 1kΩ; 1W; ±10%; 6.35mm; THT

    Mounting THT
    Power 1W
    Resistance 1kΩ
    Operating temperature -40...150°C
    Tolerance ±10%
    Body dimensions 12.5x12.5x8.8mm
    Max. operating voltage 350V AC
    Electrical life 25000cycles
    Shaft diameter 6.35mm
    Shaft surface smooth
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material cermet
    Temperature coefficient 150ppm/°C
    Potentiometer standard 12,5mm
    Electrical rotation angle 270 ±10°
    Potentiometer features for industrial use
    Potentiometer series 149
