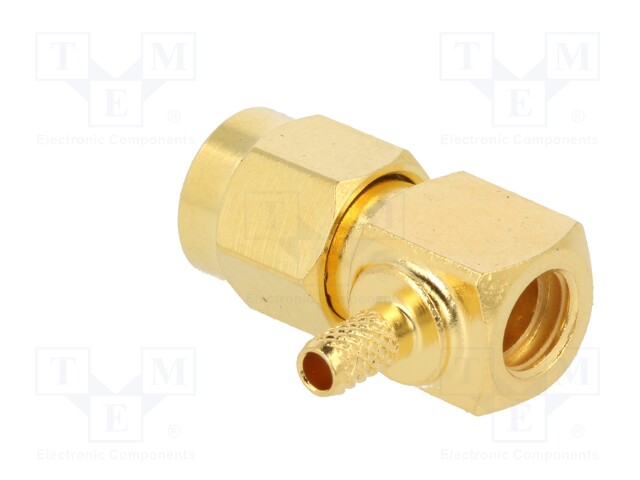

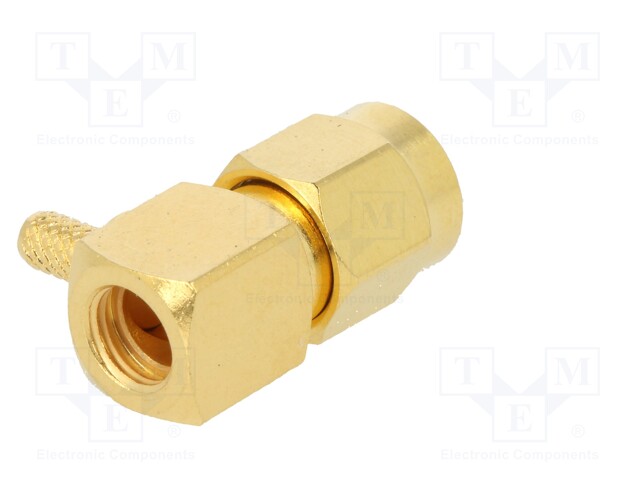

Plug; SMA; male; angled 90°; 50Ω; crimped; for cable; teflon

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 132123
    Manufacturer: AMPHENOL
    Manufacturer code: 132123
    • Operating temperature
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Mechanical durability
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Wave impedance
    • Max. frequency
    • Spatial orientation
    • Insulator material

    13.73 € 13.73 € (wo VAT) 13.73 EUR

    13.73 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Plug; SMA; male; angled 90°; 50Ω; crimped; for cable; teflon

    Operating temperature -65...165°C
    Electrical mounting soldering, crimped
    Connector plug
    Kind of connector male
    Mechanical mounting for cable
    Contact plating gold-plated
    Type of connector SMA
    Contact material brass
    Body material brass
    Mechanical durability 500cycles
    Kind of cable Belden 83269, Belden 83284, Belden 84316, RG174, RG188, RG316
    Wave impedance 50Ω
    Max. frequency 12.4GHz
    Spatial orientation angled 90°
    Insulator material teflon
