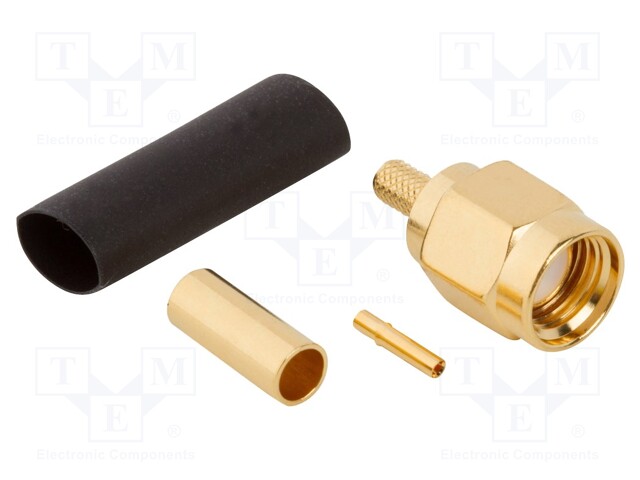

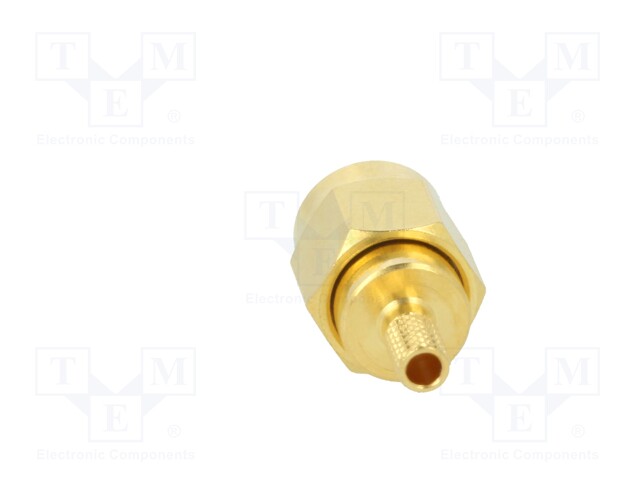

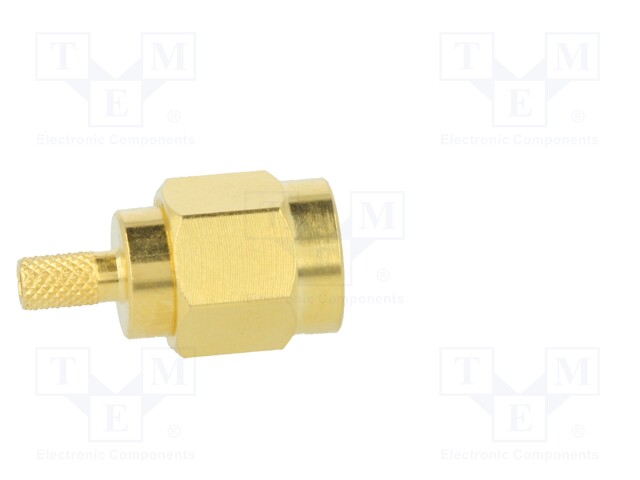

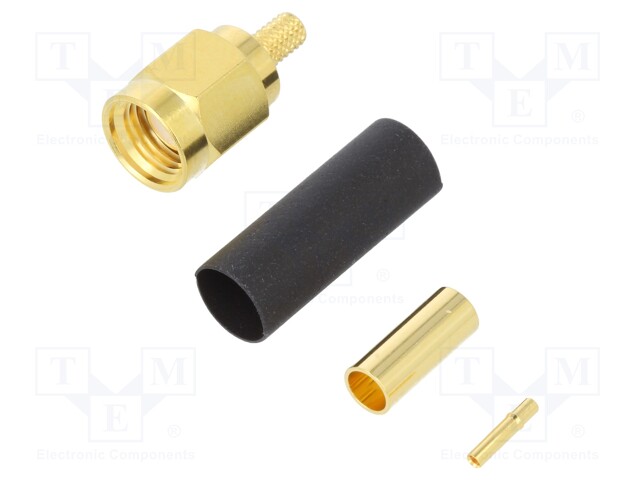

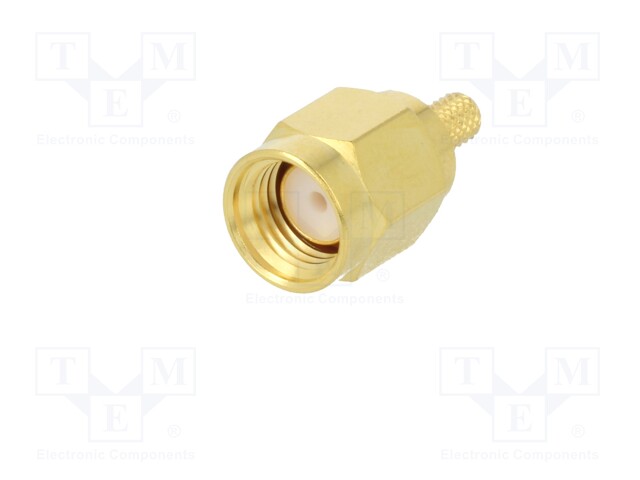

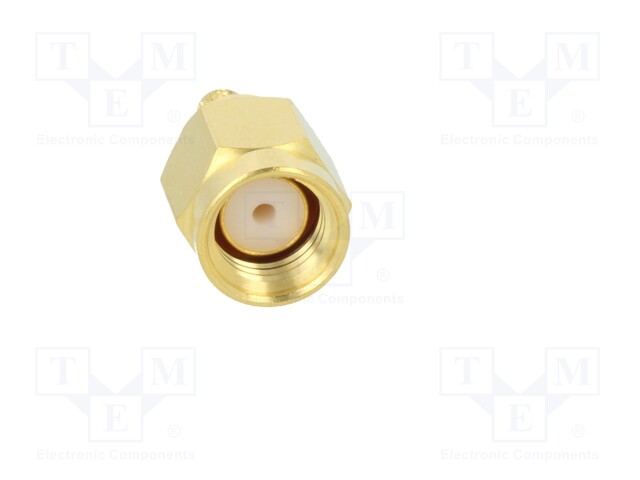

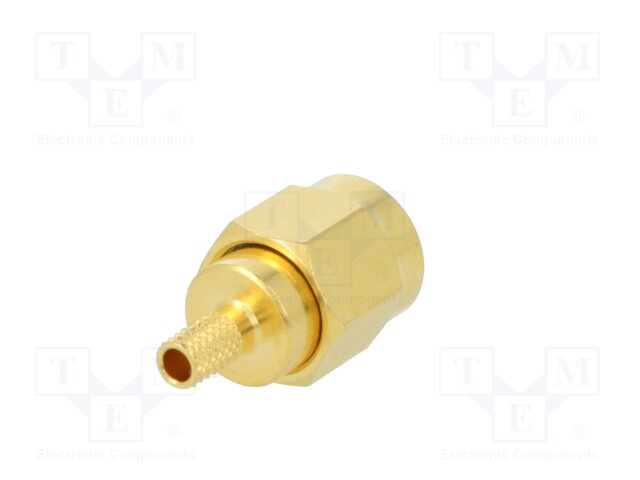

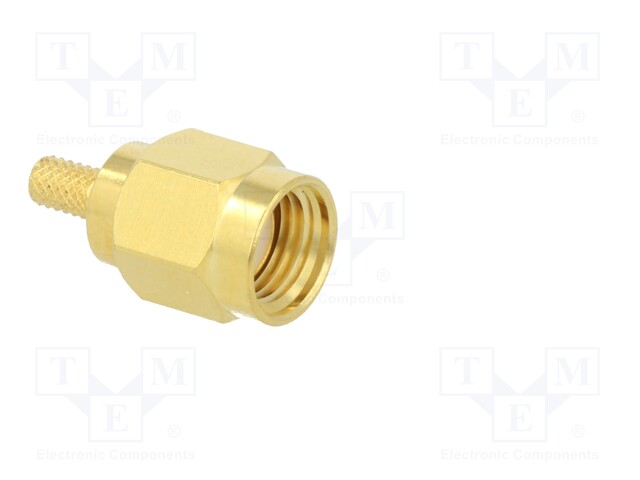

Plug; SMA; reverse,female; straight; 50Ω; crimped; for cable

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 132114RP
    Manufacturer: AMPHENOL
    Manufacturer code: 132114RP
    • Operating temperature
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Mechanical durability
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Wave impedance
    • Max. frequency
    • Spatial orientation
    • Insulator material
    • Dedicated tool

    10.50 € 10.50 € (wo VAT) 10.5 EUR

    10.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Plug; SMA; reverse,female; straight; 50Ω; crimped; for cable

    Operating temperature -65...165°C
    Electrical mounting crimped, soldering
    Connector plug
    Kind of connector female, reverse
    Mechanical mounting for cable
    Contact plating gold-plated
    Type of connector RP-SMA
    Contact material beryllium copper
    Body material brass
    Mechanical durability 500cycles
    Kind of cable Belden 83269, Belden 83284, Belden 84316, RG174, RG188, RG316
    Wave impedance 50Ω
    Max. frequency 12.4GHz
    Spatial orientation straight
    Insulator material teflon
    Dedicated tool 47-10150
