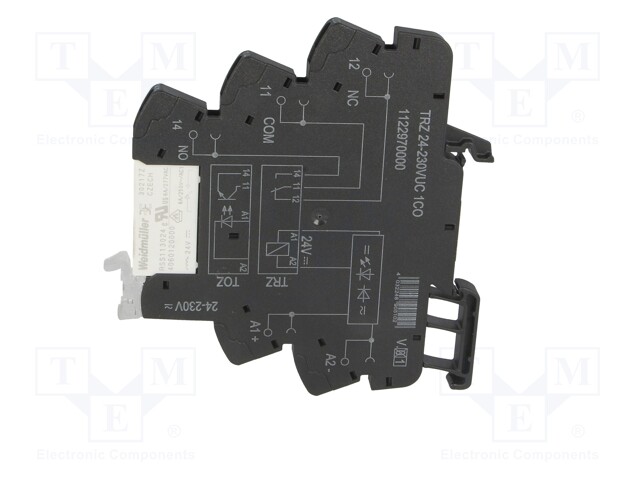

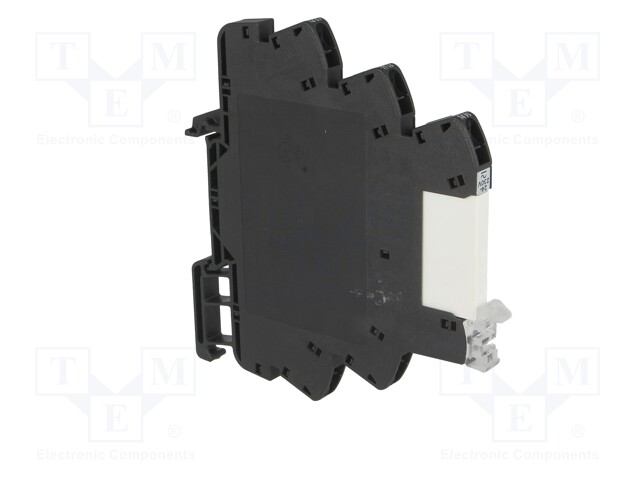

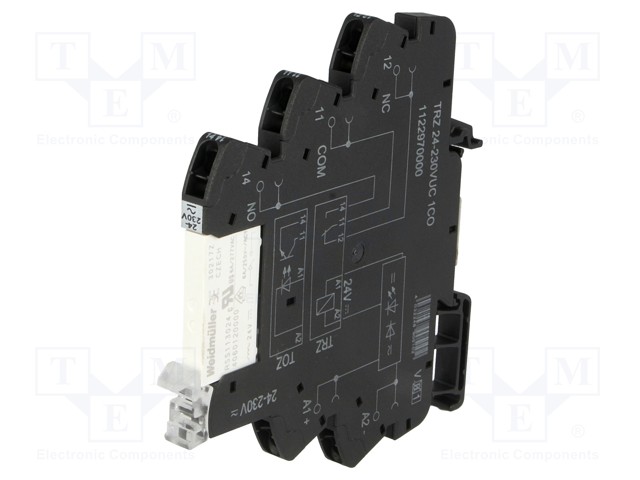

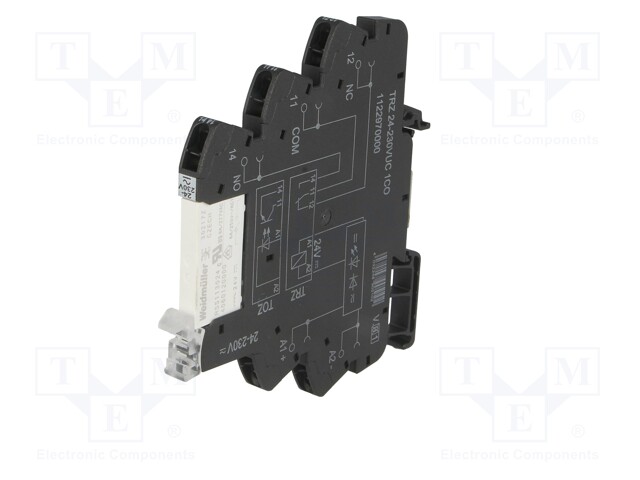

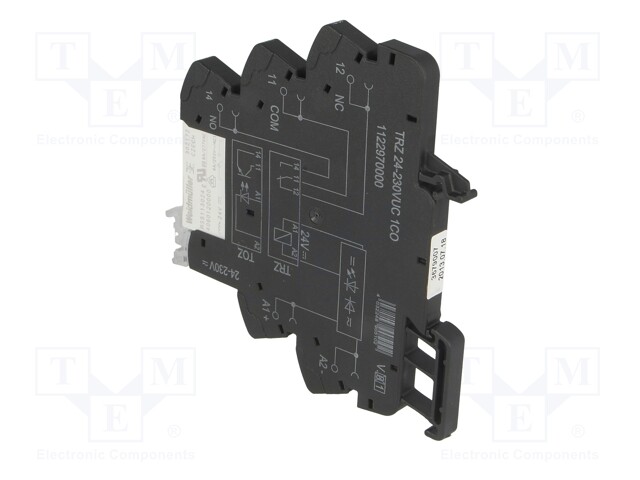

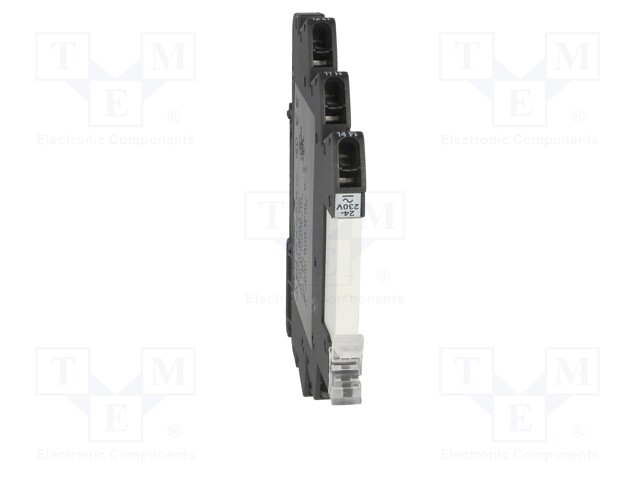

Relay: interface; SPDT; Ucntrl: 24÷230VDC; Ucntrl: 24÷230VAC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1122970000
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 1122970000
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Contacts configuration
    • Relay variant
    • Type of relay

    34.41 € 34.41 € (wo VAT) 34.410000000000004 EUR

    34.41 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPDT; Ucntrl: 24÷230VDC; Ucntrl: 24÷230VAC; 6A

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -40...60°C
    Leads screw terminals

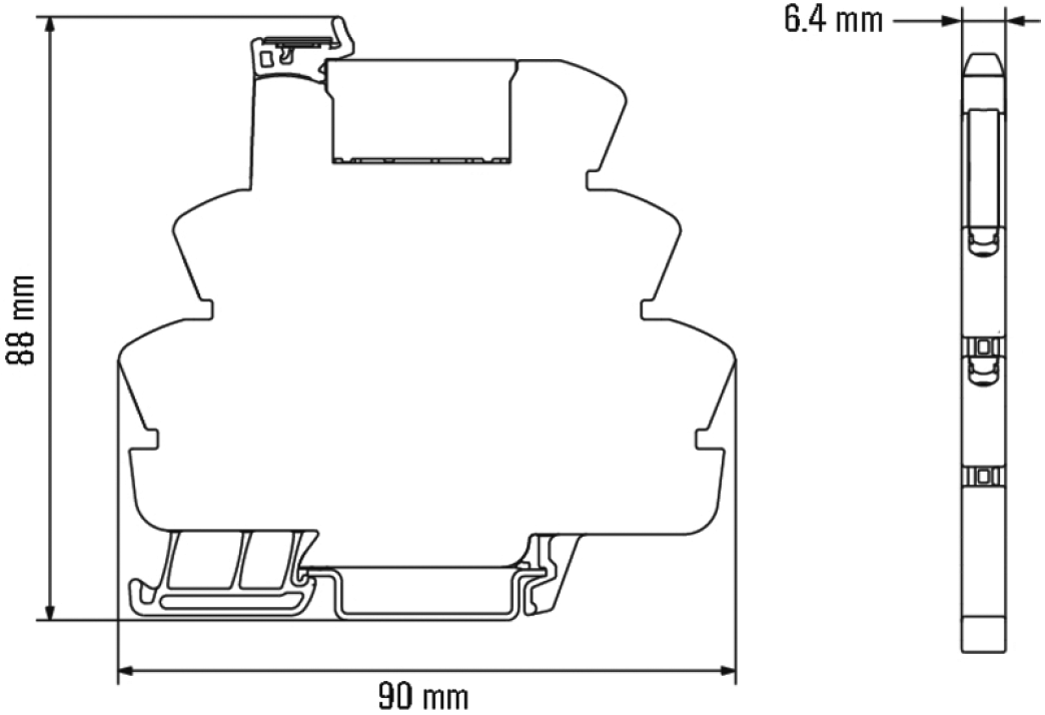

    Body dimensions 6.4x90x88mm
    Switched voltage max. 250V AC, max. 250V DC

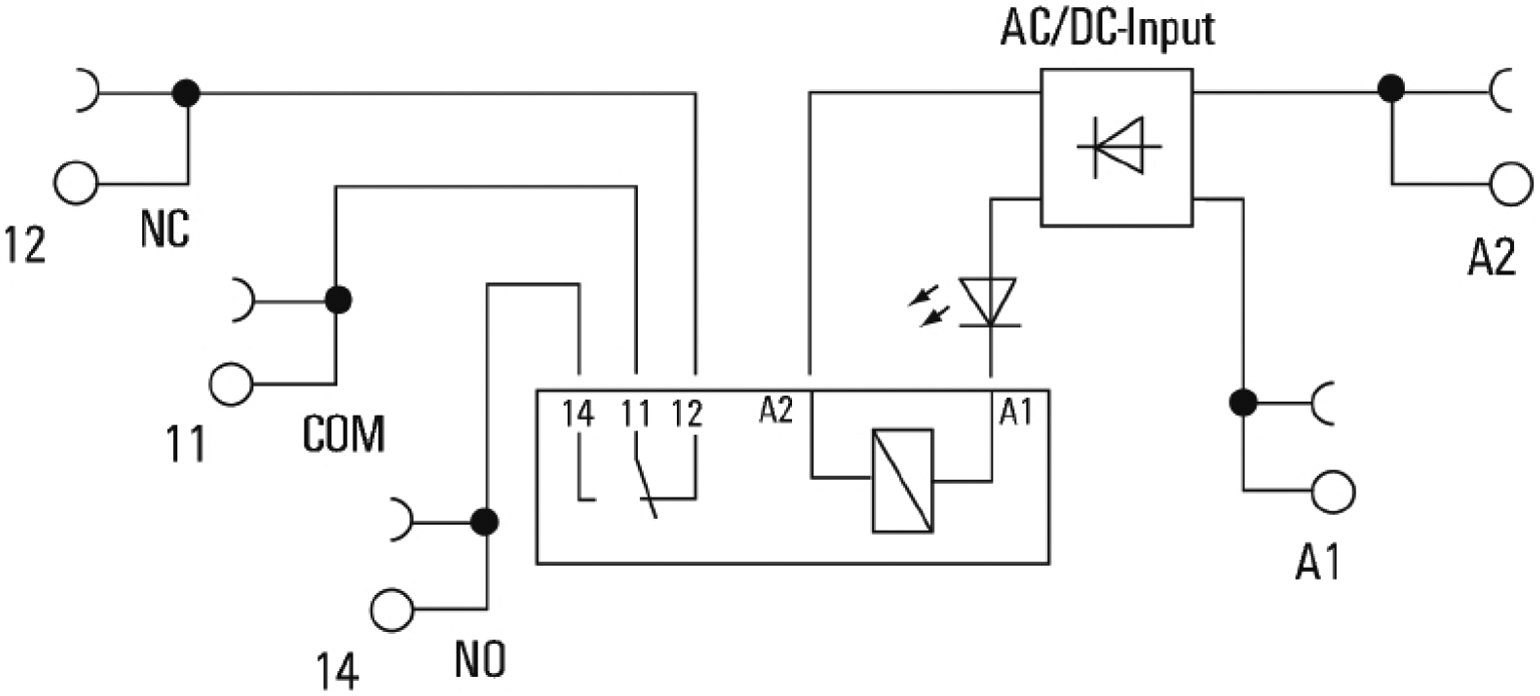

    Contacts configuration SPDT
    Relay variant Relay set
    Type of relay interface
