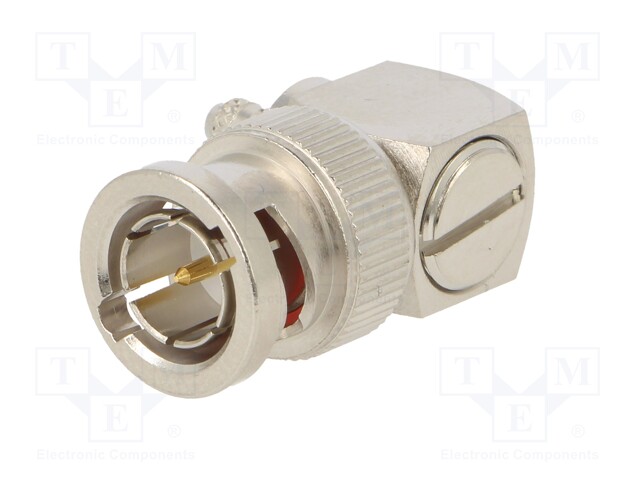

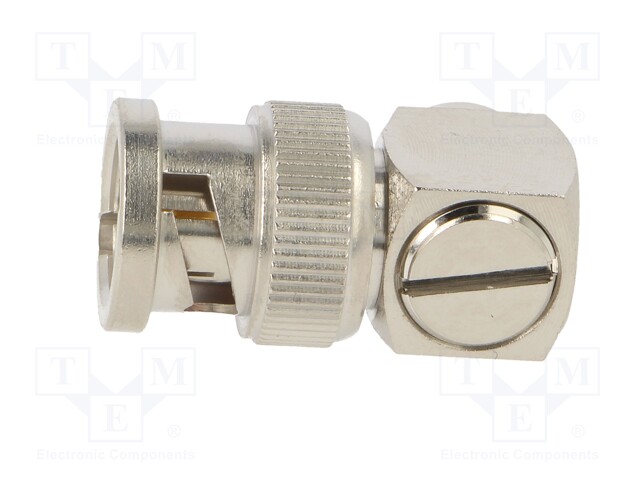

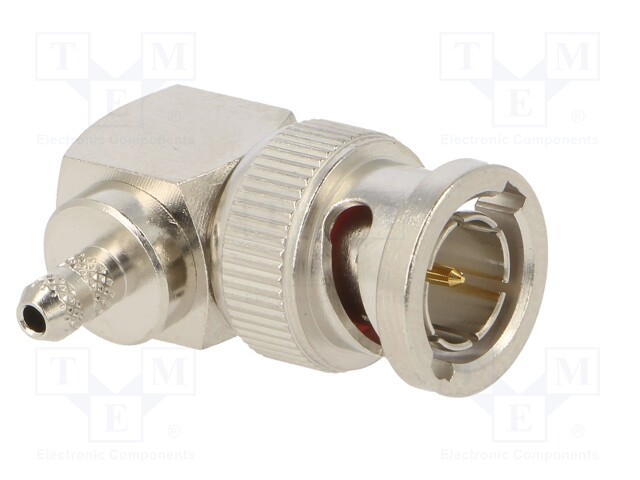

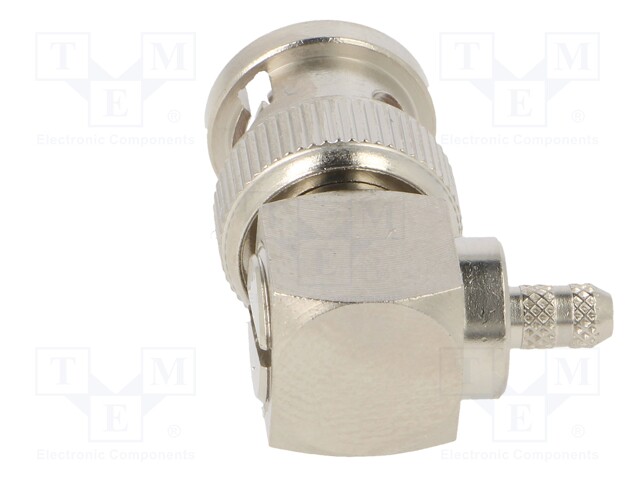

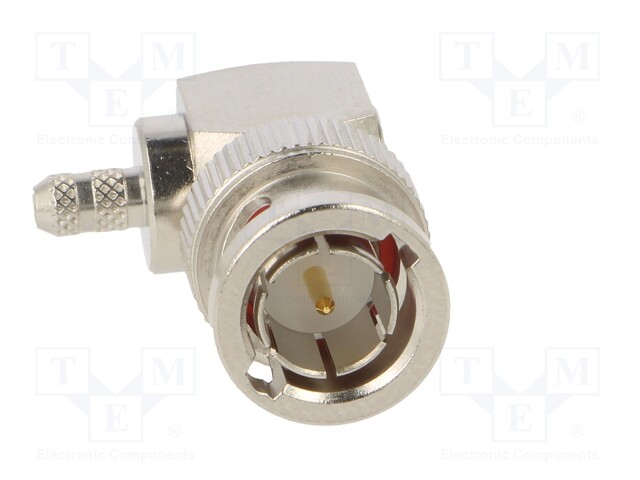

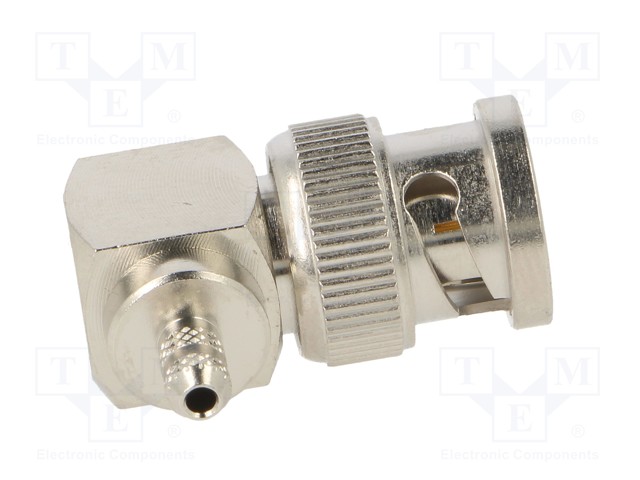

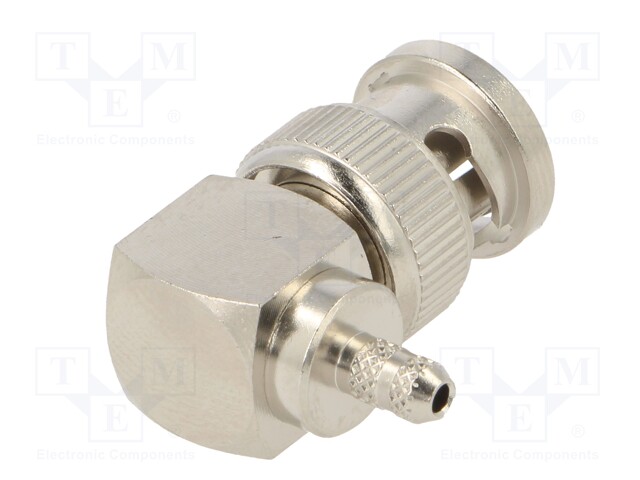

Plug; BNC; male; angled 90°; 75Ω; crimped; for cable; delrin (POM)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 112179
    Manufacturer: AMPHENOL
    Manufacturer code: 112179
    • Operating temperature
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Mechanical durability
    • Kind of cable
    • Kind of cable
    • Kind of cable
    • Wave impedance
    • Max. frequency
    • Body plating
    • Spatial orientation
    • Insulator material
    • Dedicated tool

    8.36 € 8.36 € (wo VAT) 8.36 EUR

    8.36 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Plug; BNC; male; angled 90°; 75Ω; crimped; for cable; delrin (POM)

    Operating temperature -40...85°C
    Electrical mounting crimped, soldering
    Connector plug
    Kind of connector male
    Mechanical mounting for cable
    Contact plating gold-plated
    Type of connector BNC
    Contact material brass
    Body material brass
    Mechanical durability 500cycles
    Kind of cable RG161, RG179, RG187
    Wave impedance 75Ω
    Max. frequency 4GHz
    Body plating nickel
    Spatial orientation angled 90°
    Insulator material delrin (POM)
    Dedicated tool 47-10150
