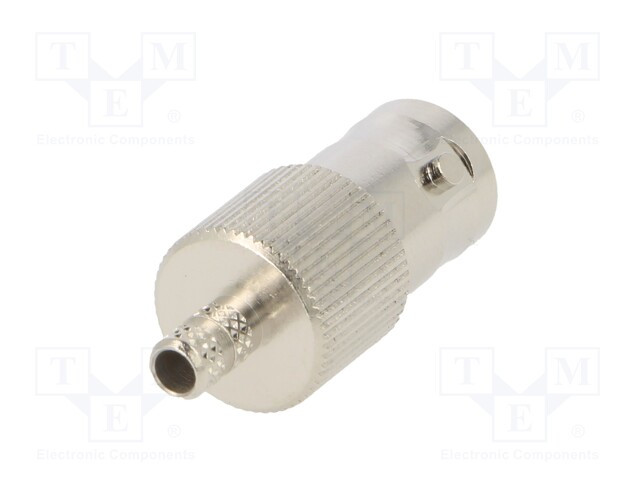

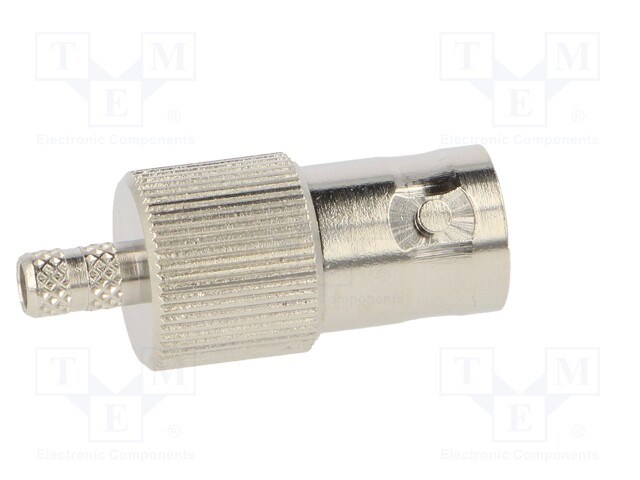

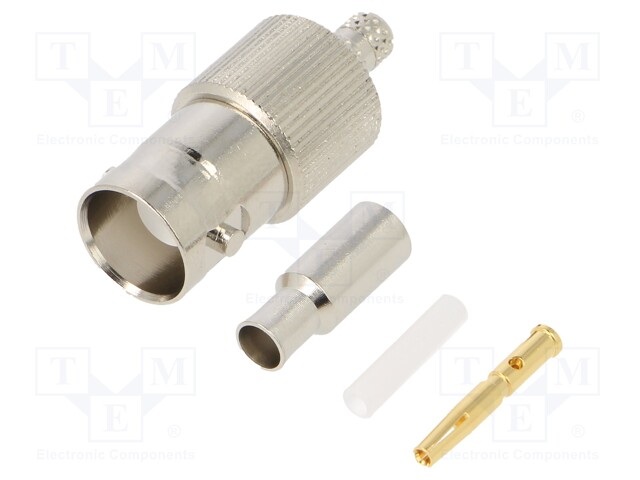

Plug; BNC; female; straight; 50Ω; crimped; for cable; delrin (POM)
Multiples:
1.0
Minimum quantity:
1.0
Product code:
112160
Manufacturer: AMPHENOL
Manufacturer code: 112160
Product downloads
Specification for Plug; BNC; female; straight; 50Ω; crimped; for cable; delrin (POM)
Operating temperature | -40...85°C |
Electrical mounting | crimped, soldering |
Connector | plug |
Kind of connector | female |
Mechanical mounting | for cable |
Contact plating | gold-plated |
Type of connector | BNC |
Contact material | phosphor bronze |
Body material | brass |
Mechanical durability | 500cycles |
Kind of cable | Belden 83269, Belden 83284, Belden 84316, RG174, RG188, RG316 |
Wave impedance | 50Ω |
Max. frequency | 4GHz |
Body plating | nickel |
Spatial orientation | straight |
Insulator material | delrin (POM) |
Dedicated tool | 47-10150 |
