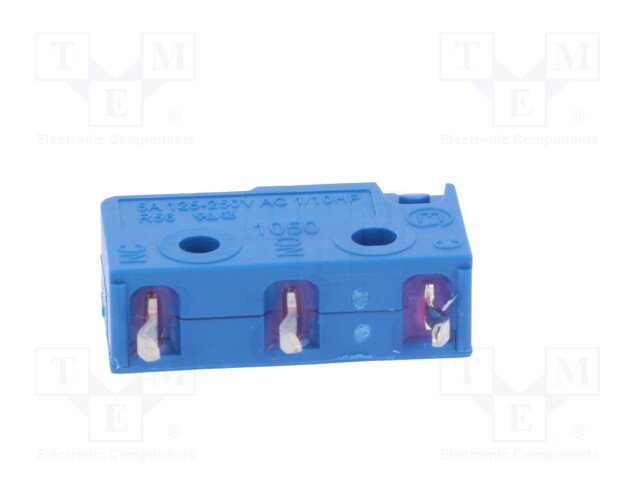

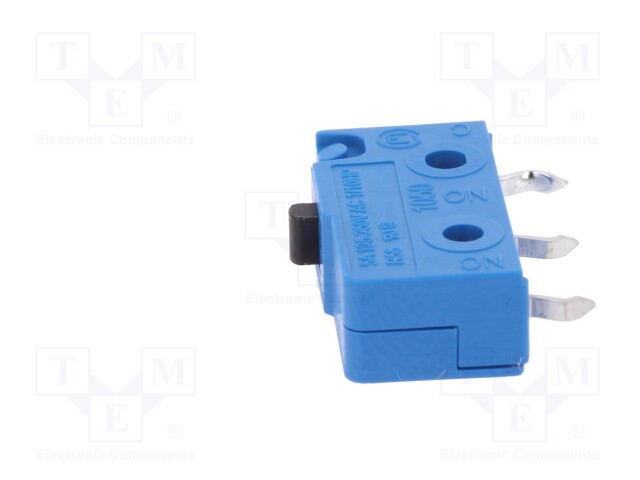

Microswitch SNAP ACTION; without lever; SPDT; 5A/250VAC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1050.2102
    Manufacturer: Marquardt
    Manufacturer code: 1050.2102
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force

    4.35 € 4.35 € (wo VAT) 4.3500000000000005 EUR

    4.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; without lever; SPDT; 5A/250VAC; Pos: 2

    Operating temperature -40...100°C
    IP rating IP40 (from the front)
    Type of switch microswitch SNAP ACTION
    Switches features without lever
    Number of positions 2
    Leads for PCB
    Contact material silver
    Terminal pitch 7.5mm
    Body dimensions 19.8x6.4x10mm
    Contacts configuration SPDT
    AC contacts rating @R 5A / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 1.9N
