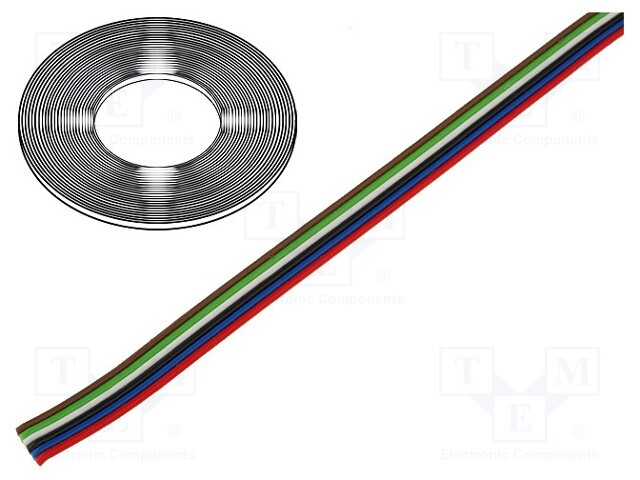

Wire: ribbon; stranded; Cu; 6x0,22mm2; unshielded; PVC; 150V; 50m
Multiples:
50.0
Minimum quantity:
50.0
Product code:
0240 046
Manufacturer: TECHNOKABEL
Manufacturer code: 0240 046
Product downloads
Specification for Wire: ribbon; stranded; Cu; 6x0,22mm2; unshielded; PVC; 150V; 50m
| Operating temperature | -30...70°C |
| Core structure | stranded |
| Kind of core | Cu |
| Number of cores | 6 |
| Wire insulation material | PVC |
| Rated voltage | 150V |
| Insulation colour | black, blue, brown, green, red, white |
| Type of wire | ribbon |
| Shield structure | unshielded |
| Core marking | colours without colour repetition, colours with colour repetition |
| Earth core | without earth core |
| Cable outside dimensions | 1.05x6.3mm |
