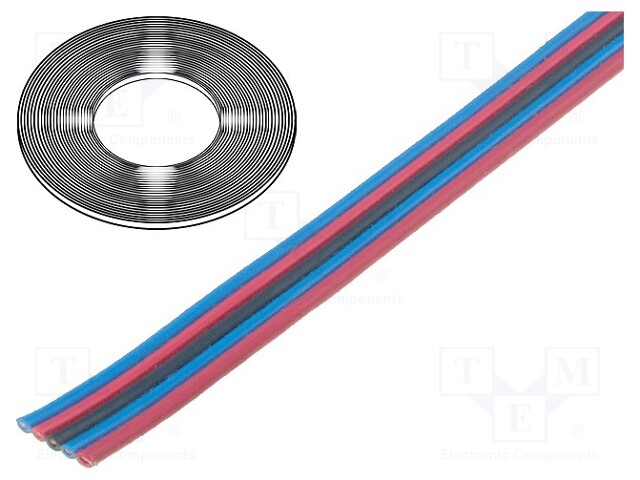

Wire: ribbon; stranded; Cu; 5x0,35mm2; unshielded; PVC; 150V; 50m

    Multiples: 50.0
    Minimum quantity: 50.0
    Product code: 0240 006
    Manufacturer: TECHNOKABEL
    Manufacturer code: 0240 006
    • Operating temperature
    • Core structure
    • Kind of core
    • Number of cores
    • Wire insulation material
    • Rated voltage
    • Insulation colour
    • Insulation colour
    • Insulation colour
    • Type of wire
    • Shield structure
    • Core marking
    • Earth core
    • Cable outside dimensions

    3.80 € 3.80 € (wo VAT) 3.8000000000000003 EUR

    3.80 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire: ribbon; stranded; Cu; 5x0,35mm2; unshielded; PVC; 150V; 50m

    Operating temperature -30...70°C
    Core structure stranded
    Kind of core Cu
    Number of cores 5
    Wire insulation material PVC
    Rated voltage 150V
    Insulation colour black, blue, red
    Type of wire ribbon
    Shield structure unshielded
    Core marking colours with colour repetition
    Earth core without earth core
    Cable outside dimensions 1.4x7mm
