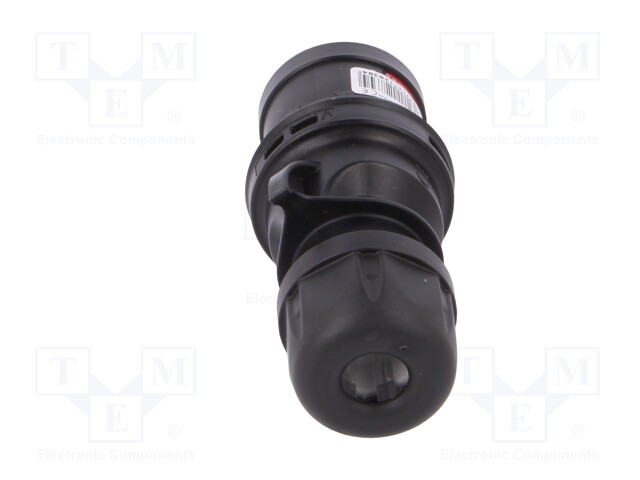

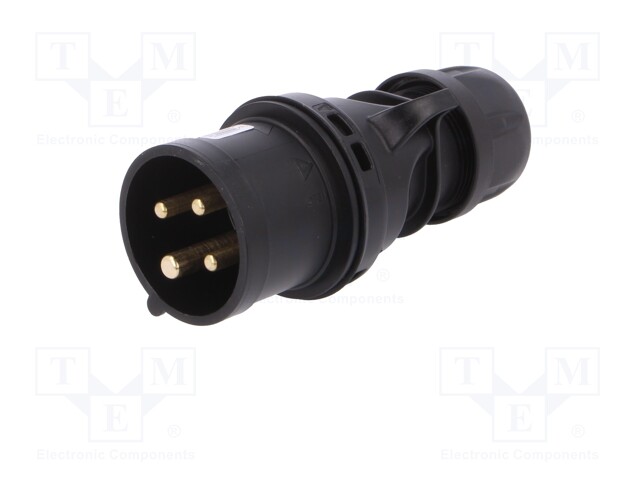

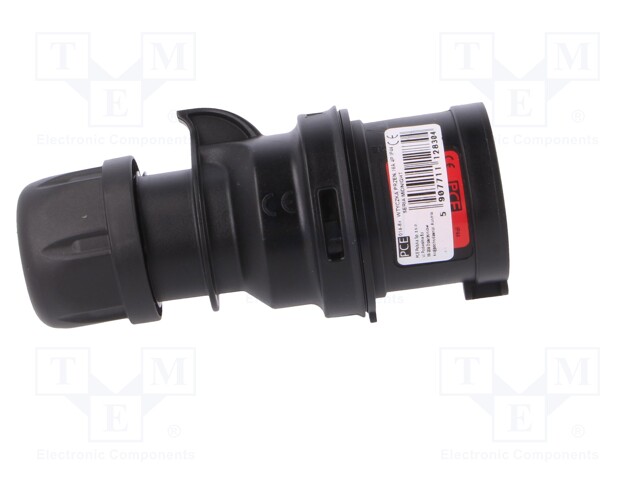

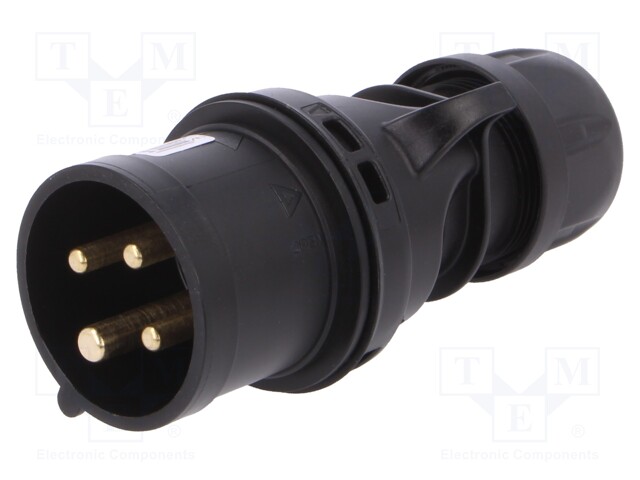

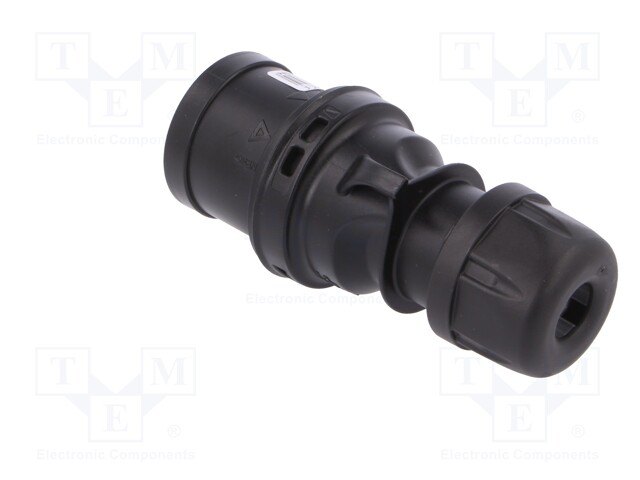

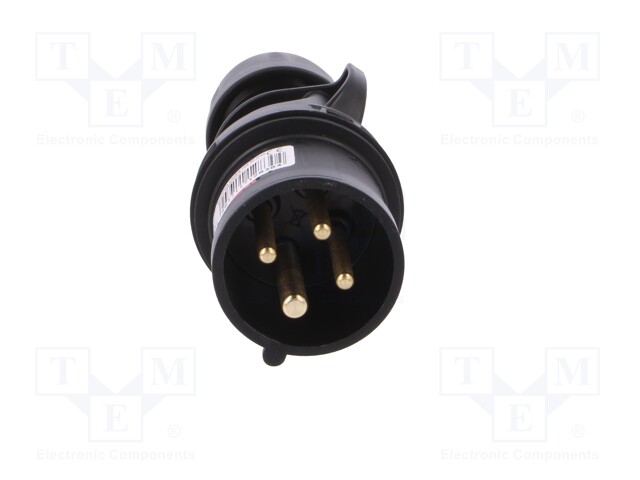

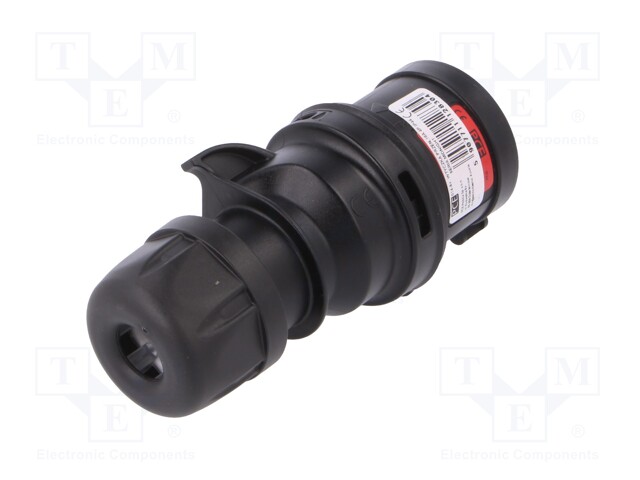

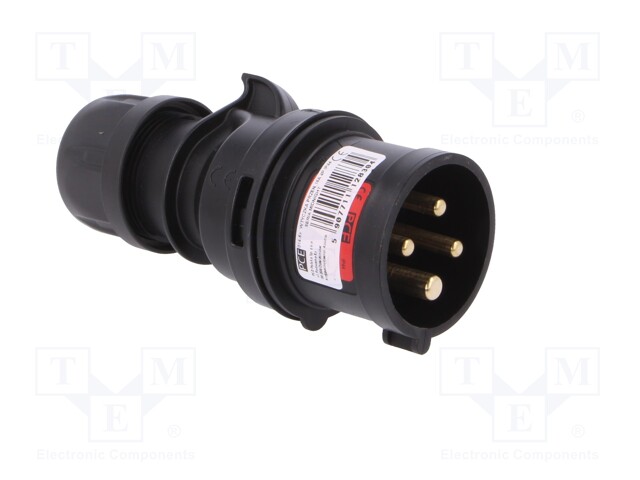

Connector: AC supply 3-phase; plug; male; 16A; 400VAC; IP44; PIN: 4

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 014-6X
    Manufacturer: PCE
    Manufacturer code: 014-6X
    • IP rating
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Polarisation
    • Type of connector
    • Number of pins
    • Contact material
    • Current rating
    • Type of pin configuration
    • Standard
    • Rated voltage
    • Connector series
    • Spatial orientation

    8.27 € 8.27 € (wo VAT) 8.27 EUR

    8.27 €

    This combination does not exist.

    Add to Cart

    Specification for Connector: AC supply 3-phase; plug; male; 16A; 400VAC; IP44; PIN: 4

    IP rating IP44
    Electrical mounting screw terminal
    Connector plug
    Kind of connector male
    Mechanical mounting for cable
    Contact plating nickel plated
    Polarisation 6H
    Type of connector AC supply 3-phase
    Number of pins 4
    Contact material brass
    Current rating 16A
    Type of pin configuration 3P+PE
    Standard IEC 60309
    Rated voltage 400V AC
    Connector series Midnight
    Spatial orientation straight
