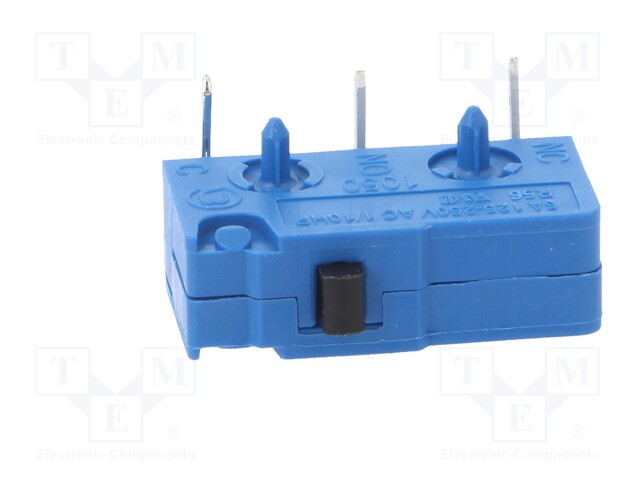

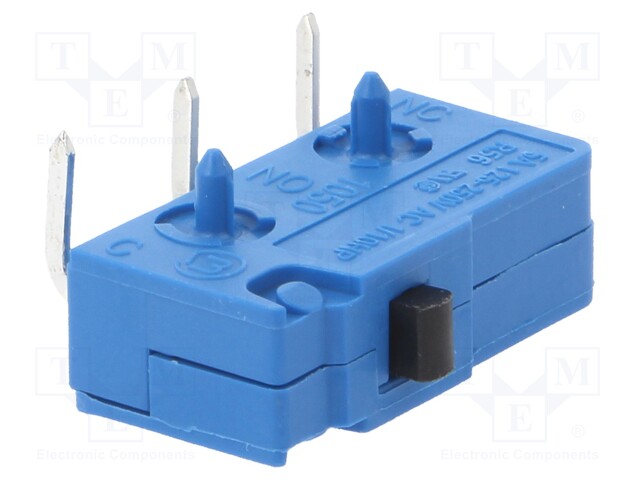

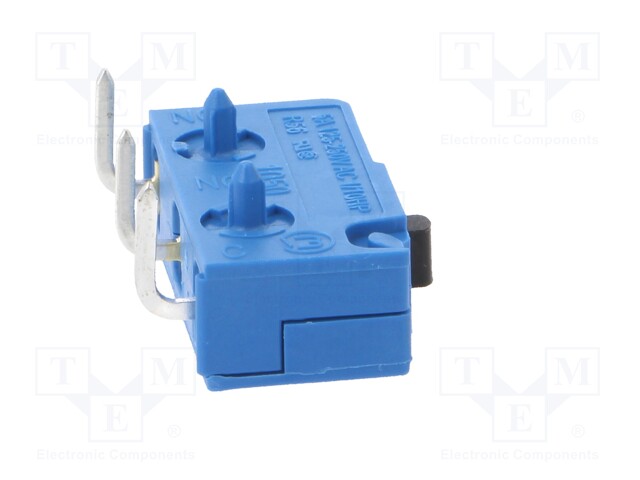

Microswitch SNAP ACTION; SPDT; 5A/250VAC; Rcont max: 100mΩ; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 01050.3102
    Manufacturer: Marquardt
    Manufacturer code: 01050.3102
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Max. contact resistance:
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Stable positions number

    5.94 € 5.94 € (wo VAT) 5.94 EUR

    5.94 €

    This combination does not exist.

    Add to Cart

    Specification for Microswitch SNAP ACTION; SPDT; 5A/250VAC; Rcont max: 100mΩ; Pos: 2

    Operating temperature -40...100°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Contact plating silver plated
    Number of positions 2
    Max. contact resistance: 100mΩ
    Mechanical durability 1000000cycles
    Electrical life 50000cycles
    Contacts configuration SPDT
    AC contacts rating @R 5A / 250V AC
    Stable positions number 1
