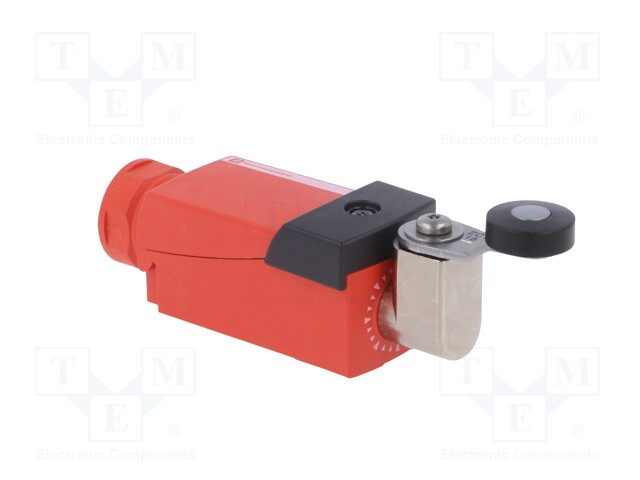

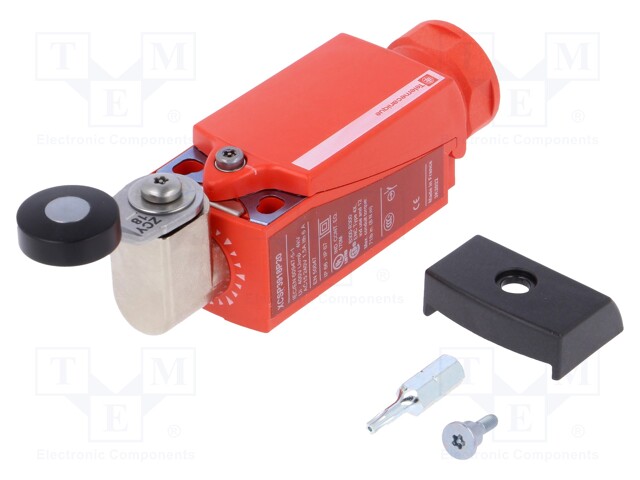

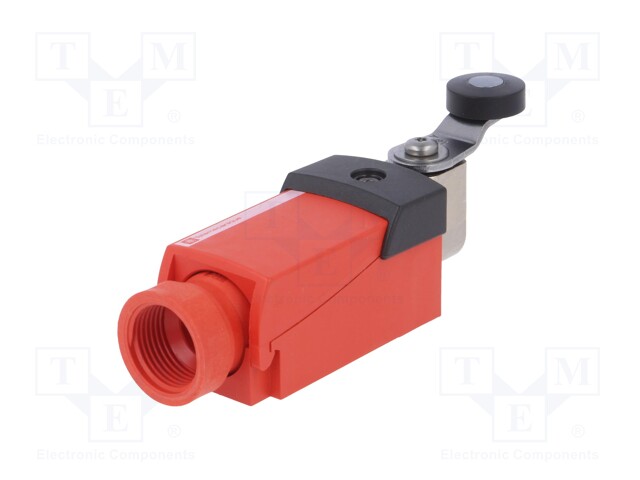

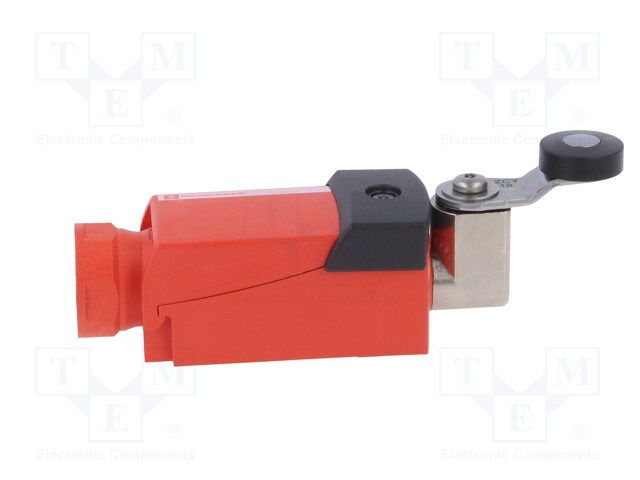

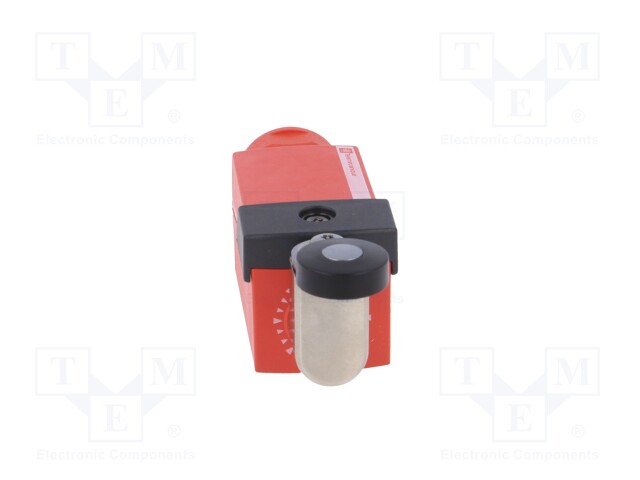

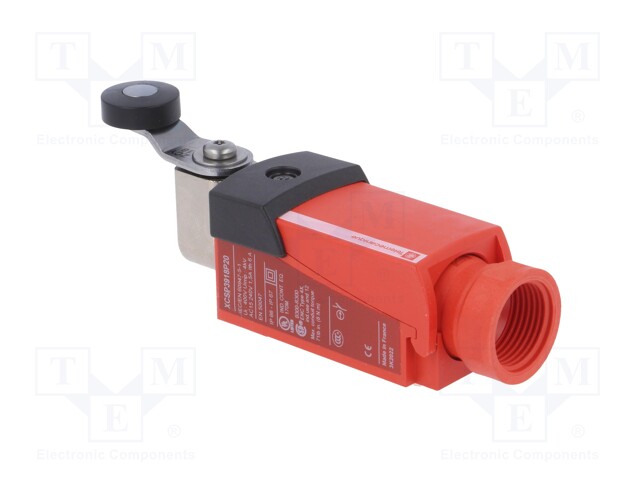

Limit switch; lever R 33mm, plastic roller Ø19mm; NC x2 + NO

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: XCSP3918P20
    Tootja: SCHNEIDER ELECTRIC
    Tootja tootekood: XCSP3918P20
    • Operating temperature
    • IP rating
    • Switches features
    • Body material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    68,12 € 68,12 € (KM-TA) 68.12 EUR

    68,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Limit switch; lever R 33mm, plastic roller Ø19mm; NC x2 + NO

    Operating temperature -25...70°C
    IP rating IP68
    Switches features snap action contacts
    Body material plastic
    Body dimensions 34x65x34mm
    Switched voltage ≤ 250V AC, ≤ 250V DC
    Output configuration NC x2 + NO
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 100mA / 250V DC
    AC contacts rating @R 1.5A / 240V AC
    Connection M20
    Contact current max. 1.5A
    Kind of actuator lever R 33mm, plastic roller Ø19mm
