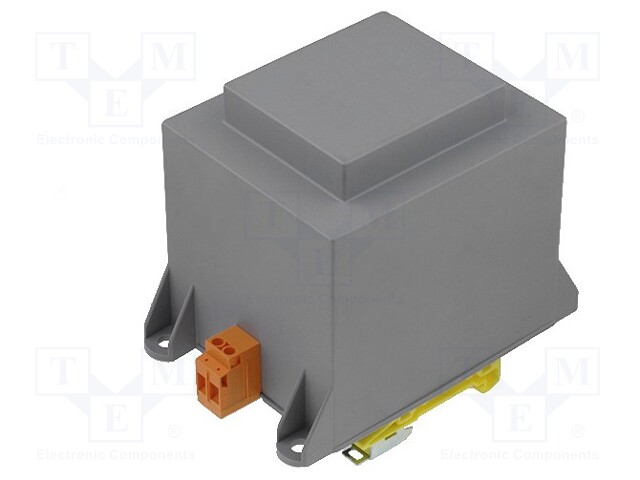

Transformer: encapsulated; 200VA; 230VAC; 230V; 860mA; 3.6kg; IP00

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TSZS 200/014M
    Tootja: INDEL
    Tootja tootekood: TSZS 200/014M
    • Mounting
    • IP rating
    • Leads
    • Flammability rating
    • D1 dimension
    • D dimension
    • Insulation class
    • Conform to the norm
    • C dimension
    • E dimension
    • Type of transformer
    • C1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Power VA

    108,32 € 108,32 € (KM-TA) 108.32000000000001 EUR

    108,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: encapsulated; 200VA; 230VAC; 230V; 860mA; 3.6kg; IP00

    Mounting for DIN rail mounting
    IP rating IP00
    Leads terminal block
    Flammability rating UL94V-0
    D1 dimension 70mm
    D dimension 115mm
    Insulation class II
    Conform to the norm PN-EN 61558
    C dimension 100mm
    E dimension 129.5mm
    Type of transformer encapsulated
    C1 dimension 84mm
    Primary voltage 230V AC
    Secondary voltage 1 230V
    Thermal class Ta40B
    Secondary winding current 1 860mA
    Power VA 200VA
