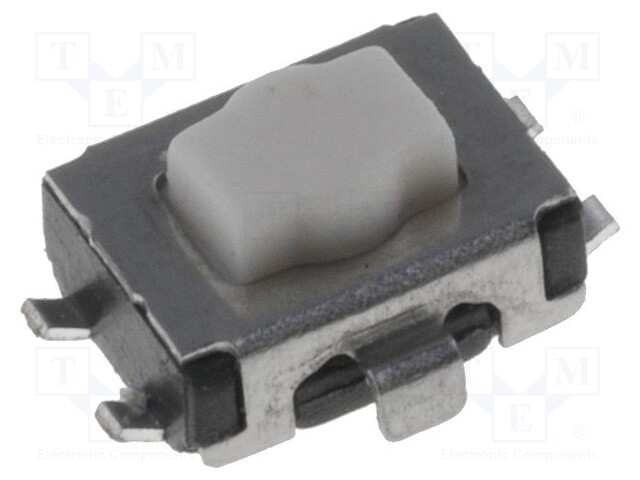

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N

    Kordarv: 1.0
    Minimum quantity: 5.0
    Tootekood: TS47-25MV160
    Tootja: CANAL ELECTRONIC
    Tootja tootekood: TS47-25MV160
    • Mounting
    • Operating temperature
    • Type of switch
    • Kind of package
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Body material
    • Soldering temperature
    • Mechanical durability
    • Illumination
    • Min. insulation resistance
    • Terminals plating
    • Contacts configuration
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button height
    • Terminals material

    0,89 € 0,89 € (KM-TA) 0.89 EUR

    0,89 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N

    Mounting SMT
    Operating temperature -20...70°C
    Type of switch microswitch TACT
    Kind of package reel
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material steel
    Max. contact resistance 500mΩ
    Terminal pitch 1.7x5.15mm
    Body material stainless steel, thermoplastic
    Soldering temperature 230°C / 5 s
    Mechanical durability 100000cycles
    Illumination none
    Min. insulation resistance 1GΩ
    Terminals plating silver plated
    Contacts configuration SPST-NO
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 1.6N
    Actuator colour white
    Button shape rectangular
    Button height 2.5mm
    Terminals material brass
