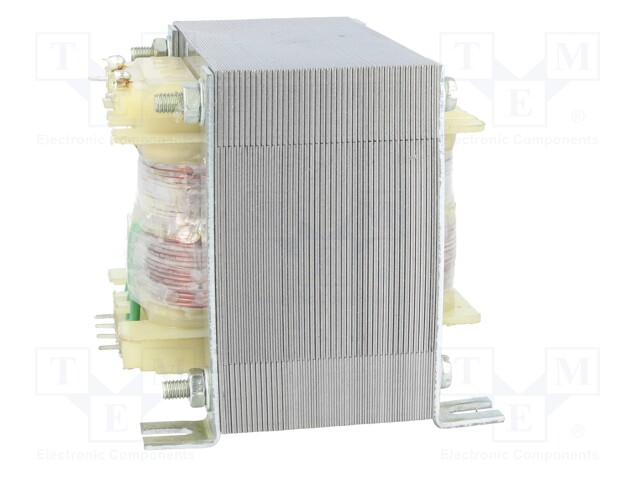

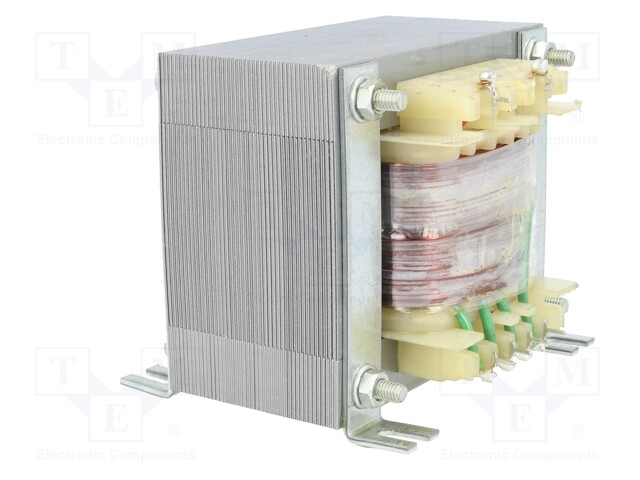

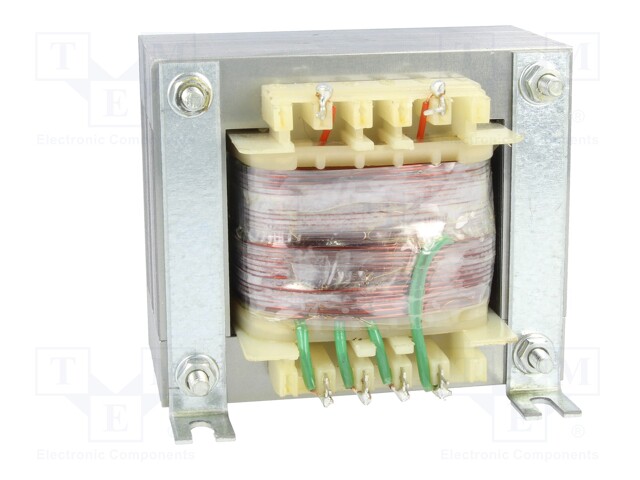

Transformer: mains; 70VA; 230VAC; 16.6V; 16.6V; 2A; 2A; IP00

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TS 70/16
    Tootja: INDEL
    Tootja tootekood: TS 70/16
    • Mounting
    • IP rating
    • Leads
    • Insulation class
    • Conform to the norm
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary voltage 2
    • Secondary winding current 1
    • Primary winding terminals
    • Secondary winding current 2
    • Secondary winding terminals
    • Power VA

    40,14 € 40,14 € (KM-TA) 40.14 EUR

    40,14 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Transformer: mains; 70VA; 230VAC; 16.6V; 16.6V; 2A; 2A; IP00

    Mounting screw type
    IP rating IP00
    Leads for PCB
    Insulation class I
    Conform to the norm PN-EN 61558
    Type of transformer mains
    Primary voltage 230V AC
    Secondary voltage 1 16.6V
    Thermal class Ta40B
    Secondary voltage 2 16.6V
    Secondary winding current 1 2A
    Primary winding terminals 5-2
    Secondary winding current 2 2A
    Secondary winding terminals 8-9, 10-11
    Power VA 70VA
