Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TQ2-L2-12V
    Tootja: PANASONIC
    Tootja tootekood: TQ2-L2-12V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    2,42 € 2,42 € (KM-TA) 2.42 EUR

    2,42 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Contact material silver alloy

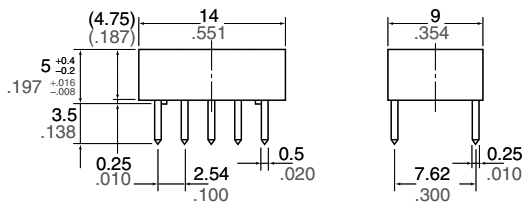

    Body dimensions 14x9x5mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 110V DC, ≤ 125V AC
    Coil resistance 1.028kΩ
    Rated coil voltage 12V DC

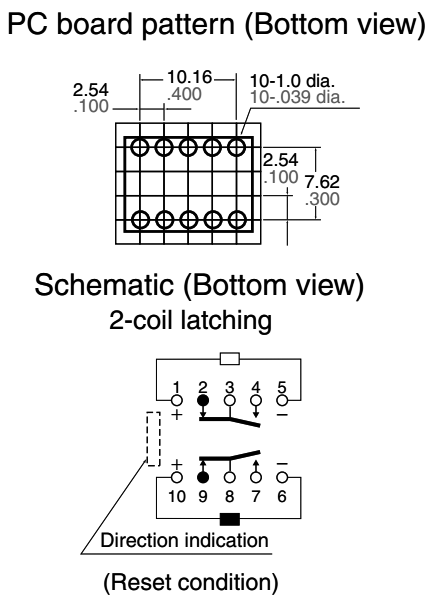

    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant bistable, signal, subminiature
    Type of relay electromagnetic
    Coil power consumption 140mW
    Relay series TQ
    Coil current 11.7mA
