Transformer: mains; 50VA; 400VAC; 24V; Leads: terminal block; 1kg

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: STM50/400/24V
Tootja: BREVE TUFVASSONS
Tootja tootekood: STM50/400/24V
  • Mounting
  • IP rating
  • Leads
  • Body dimensions
  • D dimension
  • Insulation class
  • B dimension
  • A dimension
  • Conform to the norm
  • Conform to the norm
  • C dimension
  • E dimension
  • Type of transformer
  • Primary voltage
  • Secondary voltage 1
  • Thermal class
  • Power VA

38,30 € 38,30 € (KM-TA) 38.300000000000004 EUR

38,30 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Transformer: mains; 50VA; 400VAC; 24V; Leads: terminal block; 1kg

Mounting screw type
IP rating IP00
Leads terminal block

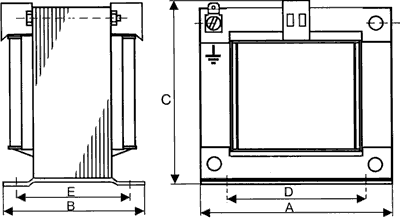

Body dimensions 66x77x65mm
D dimension 50mm
Insulation class I
B dimension 65mm
A dimension 66mm
Conform to the norm PN-EN 61558-2-4, PN-EN 61558-2-6
C dimension 77mm
E dimension 52mm
Type of transformer mains
Primary voltage 400V AC
Secondary voltage 1 24V
Thermal class B
Power VA 50VA
