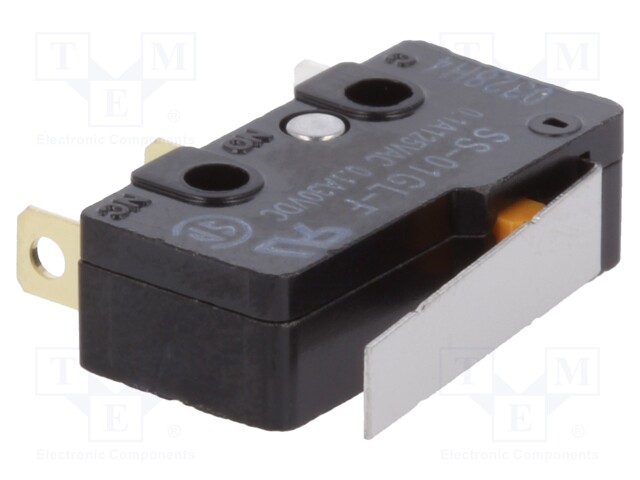

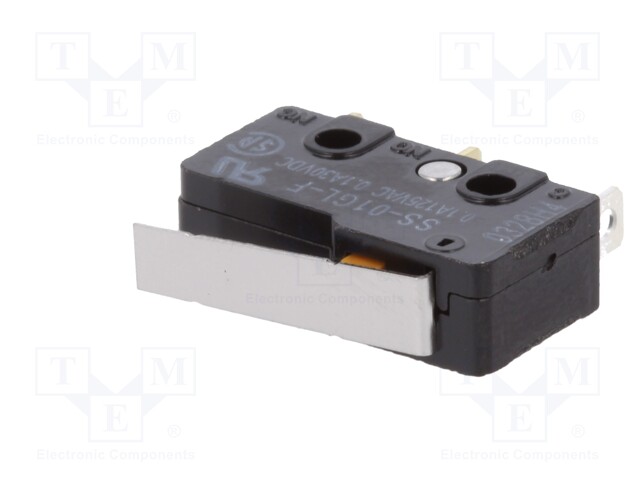

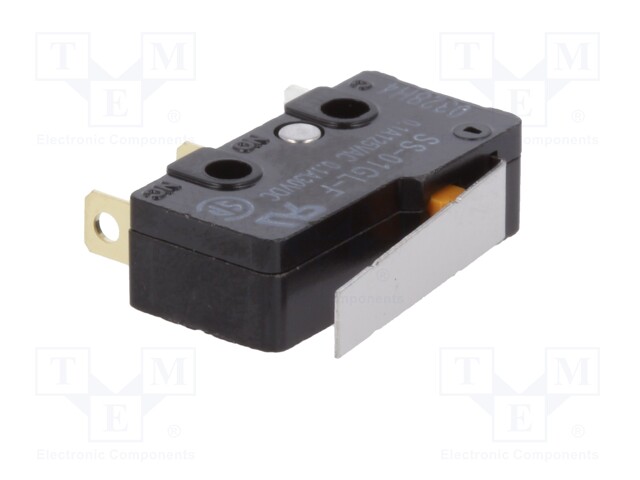

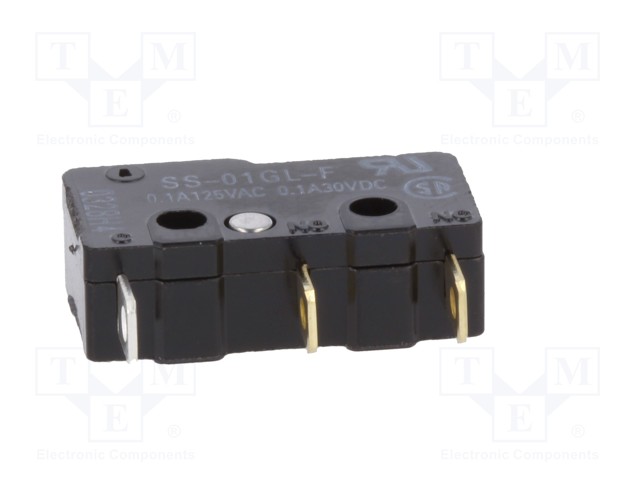

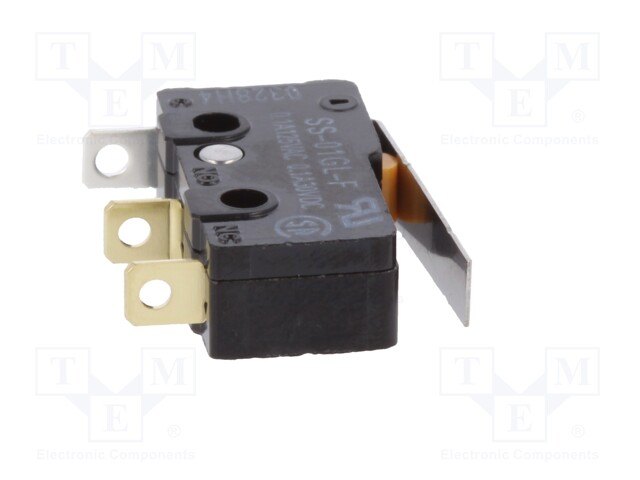

Microswitch SNAP ACTION; with lever; SPDT; 0.1A/125VAC; ON-(ON)

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SS-01GL-F
    Tootja: OMRON OCB
    Tootja tootekood: SS-01GL-F
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Series
    • Max. contact resistance
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Lever length

    2,03 € 2,03 € (KM-TA) 2.0300000000000002 EUR

    2,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Microswitch SNAP ACTION; with lever; SPDT; 0.1A/125VAC; ON-(ON)

    Operating temperature -25...85°C
    IP rating IP40
    Type of switch microswitch SNAP ACTION
    Switches features with lever
    Number of positions 2
    Leads for soldering
    Series SS
    Max. contact resistance 50mΩ
    Terminal pitch 7.3mm
    Body dimensions 19.8x6.4x10.2mm
    Mechanical durability 30000000cycles
    Electrical life 200000cycles
    Contacts configuration SPDT
    DC contacts rating @R 100mA / 30V DC
    AC contacts rating @R 100mA / 125V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 490mN
    Lever length 14.5mm
