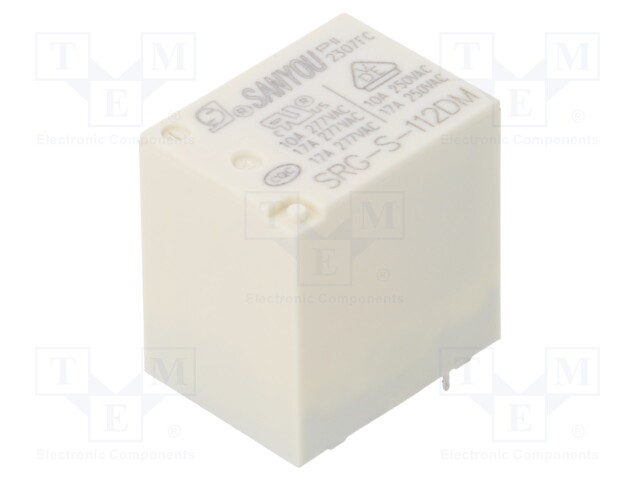

Relay: electromagnetic

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: SRG-S-112DM
    Tootja: SANYOU
    Tootja tootekood: SRG-S-112DM
    • Mounting
    • Operating temperature
    • Contact material
    • Current rating
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1,44 € 1,44 € (KM-TA) 1.44 EUR

    1,44 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic

    Mounting THT
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>
    Current rating 17A
    Switched voltage ≤ 277V AC
    Coil resistance 400Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    Contact current max. 20A
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 360mW
