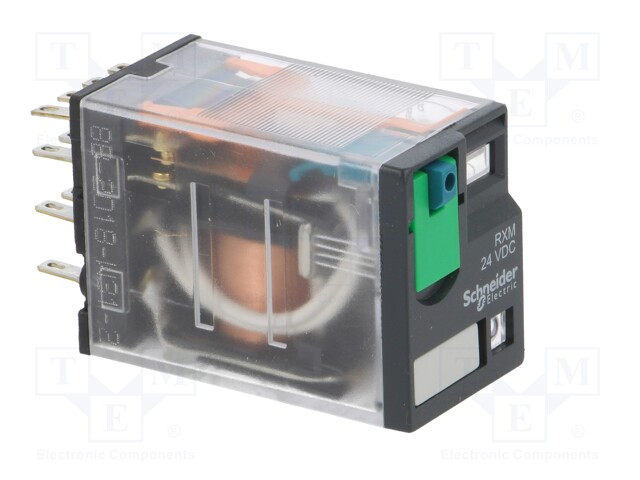

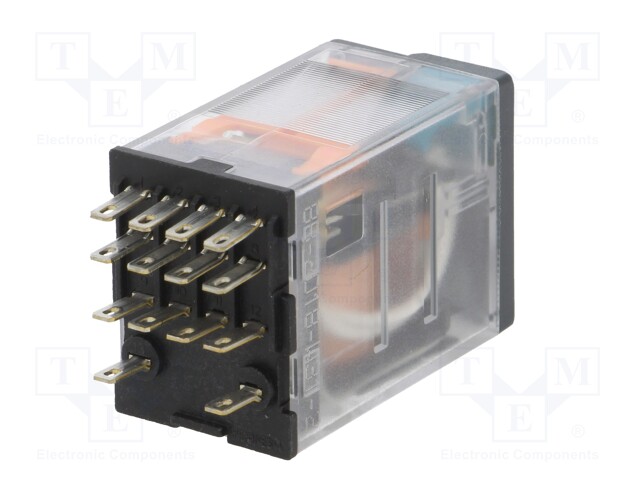

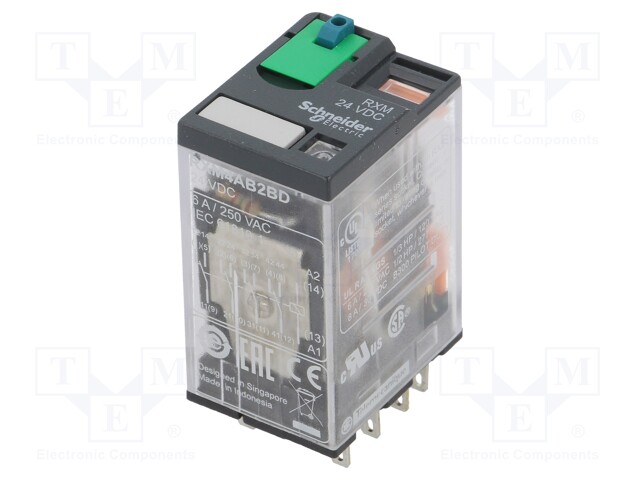

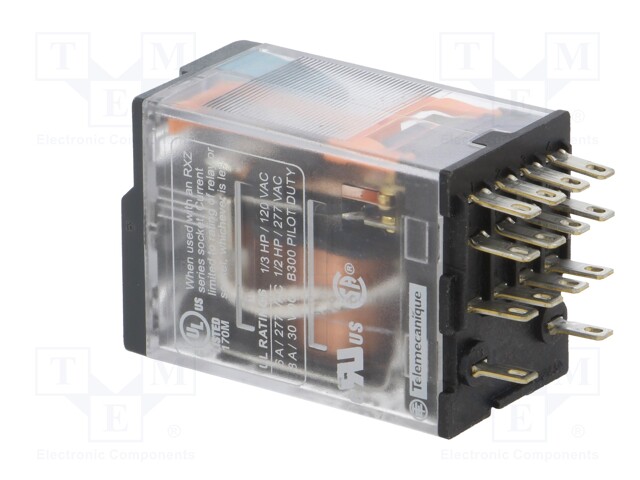

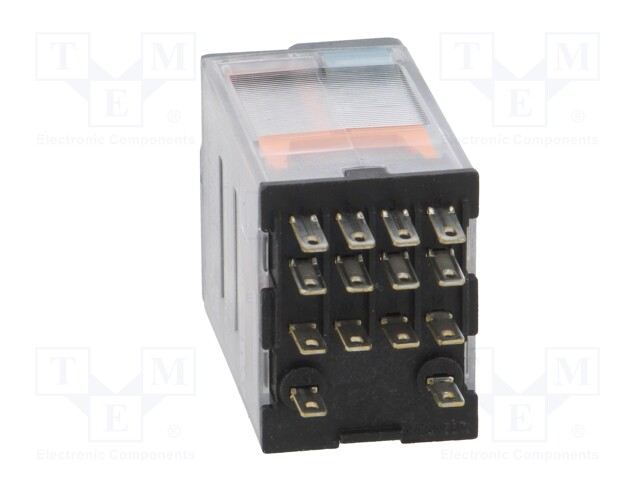

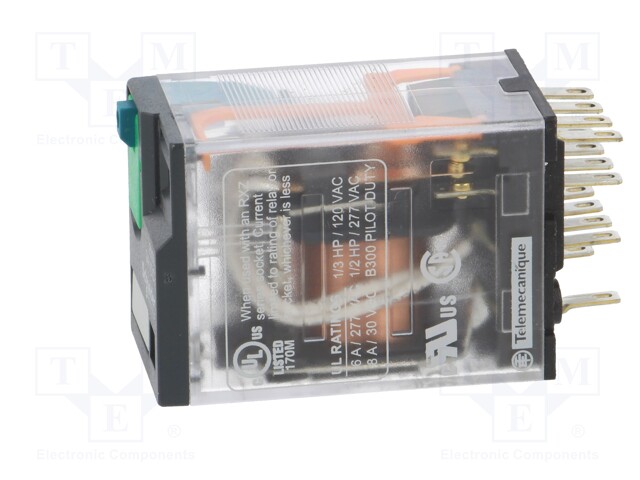

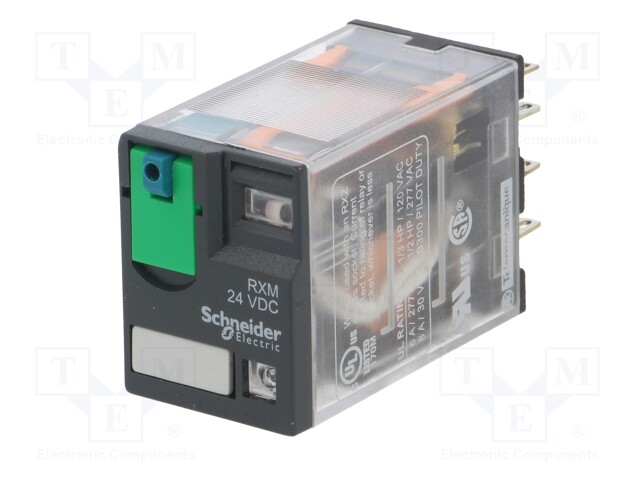

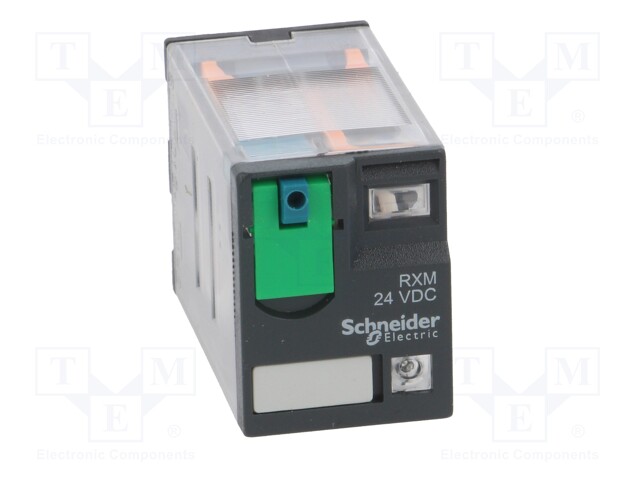

Relay: electromagnetic; 4PDT; 24VDC; Icontacts max: 6A; max.250VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: RXM4AB2BD
    Tootja: SCHNEIDER ELECTRIC
    Tootja tootekood: RXM4AB2BD
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil power consumption
    • Relay series
    • Coil current

    11,82 € 11,82 € (KM-TA) 11.82 EUR

    11,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; 4PDT; 24VDC; Icontacts max: 6A; max.250VAC

    Mounting socket
    Operating temperature -40...55°C
    Body dimensions 40x27x21mm
    Switched voltage ≤ 250V AC, ≤ 28V DC
    Coil resistance 650Ω
    Rated coil voltage 24V DC
    Contacts configuration 4PDT
    DC contacts rating @R 6A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 0.9W, 1.2VA
    Relay series RXM
    Coil current 10mA
