Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RM12N-3011-35-1024
Tootja: RELPOL
Tootja tootekood: RM12N-3011-35-1024
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 8A/250VAC; 8A/28VDC
Mounting | PCB |
Operating temperature | -40...85°C |
IP rating | IP67 |
Contact material | AgSnO<sub>2</sub> |
Terminal pitch | 7.62mm |

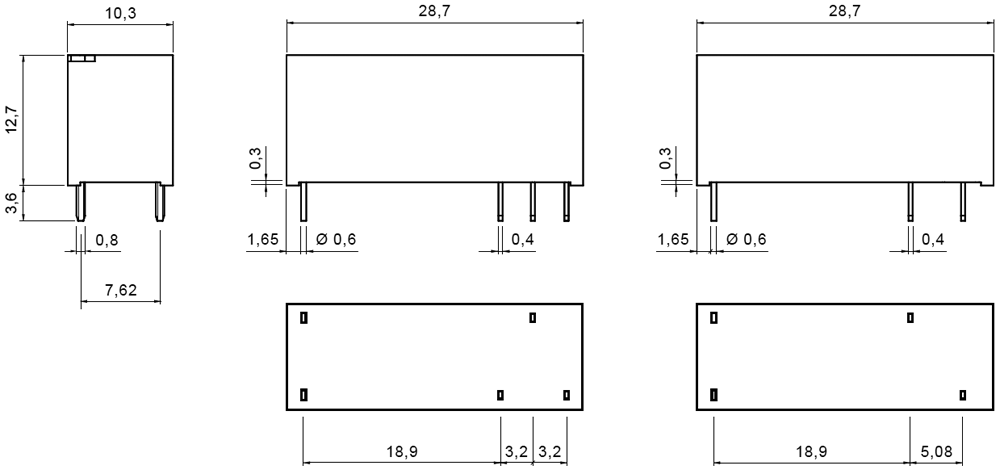

Body dimensions | 28.7x10.3x12.7mm |
Mechanical durability | 100000000cycles |
Switched voltage | ≤ 30V DC, ≤ 440V AC |
Electrical life | 100000cycles |
Coil resistance | 2.35kΩ |
Rated coil voltage | 24V DC |
Contacts configuration | SPDT |
DC contacts rating @R | 8A / 28V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 8A / 250V AC |
Contact current max. | 10A |
Relay variant | miniature |
Coil voltage max. | 31.2V DC |
Type of relay | electromagnetic |
Coil voltage min. | 16.8V DC |
Coil power consumption | 220mW |
Relay series | RM12N |
Operate time | 10ms |
Release time | 5ms |
OEM number | 2614942 |
