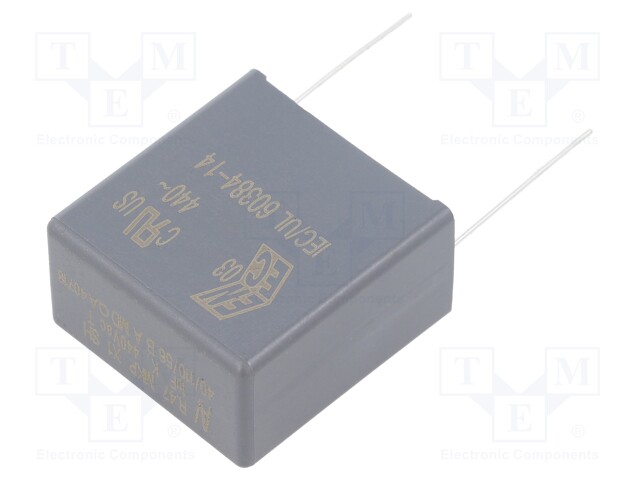

Capacitor: polypropylene; X1; 1uF; 440VAC; ±10%; THT; Pitch: 27.5mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R474R410050A1KV057
    Tootja: KEMET
    Tootja tootekood: R474R410050A1KV057
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Lead length
    • Conform to the norm
    • Climate class
    • Pulse resistance

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; X1; 1uF; 440VAC; ±10%; THT; Pitch: 27.5mm

    Mounting THT
    Operating temperature -40...110°C
    Tolerance ±10%
    Terminal pitch 27.5mm
    Body dimensions 32x33x18mm
    Max. operating voltage 440V AC, 1kV DC
    Capacitance 1µF
    Kind of capacitor X1
    Type of capacitor polypropylene
    Lead length 25mm
    Conform to the norm AEC-Q200
    Climate class IEC60068-1
    Pulse resistance 225V/μs
