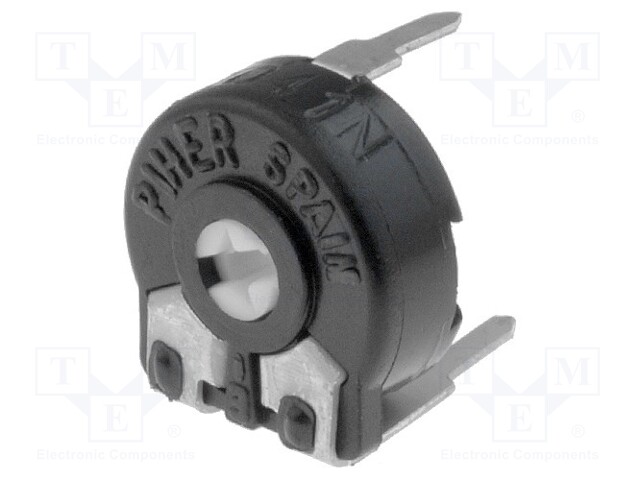

Potentiometer: mounting; single turn,horizontal; 5MΩ; 150mW; ±30%

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: PT10LV10505A3030S
    Tootja: PIHER
    Tootja tootekood: PT10LV10505A3030S
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer standard
    • Torque
    • Electrical rotation angle
    • Potentiometer series

    0,81 € 0,81 € (KM-TA) 0.81 EUR

    0,81 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Potentiometer: mounting; single turn,horizontal; 5MΩ; 150mW; ±30%

    Mounting THT
    Power 150mW
    Resistance 5MΩ
    Operating temperature -25...70°C
    Tolerance ±30%
    Terminal pitch 5x10mm
    Body dimensions Ø10.3x4.5mm
    Max. operating voltage 200V
    Kind of potentiometer horizontal, single turn
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 235° ±5
    Potentiometer standard 10mm
    Torque 0,4...2Ncm
    Electrical rotation angle 220° ±20
    Potentiometer series PT10LV
