Power supply: buffer; 35.88W; 127÷370VDC; 90÷264VAC; OUT: 2; 1.7A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PSC-35A
    Tootja: MEAN WELL
    Tootja tootekood: PSC-35A
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • Protection
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Efficiency
    • Output current 2
    • Output voltage 2
    • Number of outputs
    • Kind of power supply

    17,32 € 17,32 € (KM-TA) 17.32 EUR

    17,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Power supply: buffer; 35.88W; 127÷370VDC; 90÷264VAC; OUT: 2; 1.7A

    Output current 1.7A
    Supply voltage 90...264V AC, 127...370V DC
    Power 35.88W
    Operating temperature -20...70°C
    Protection battery polarity, anti-overload, anti-overvoltage, discharge below, short circuit protection
    Type of power supply buffer

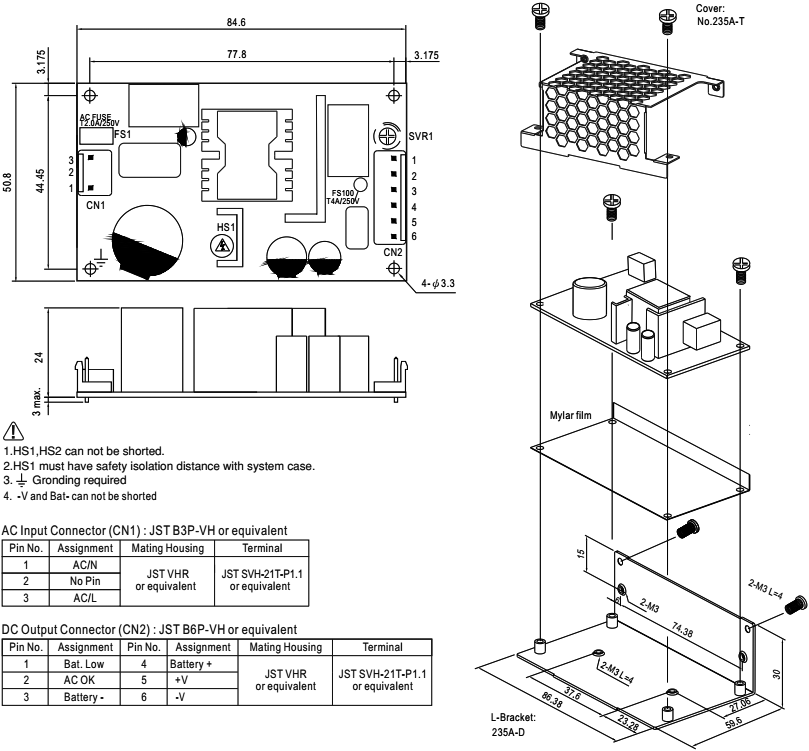

    Body dimensions 84.6x50.8x24mm
    Output voltage 13.8V DC
    Additional functions battery tester, UPS
    Efficiency 84%
    Output current 2 900mA
    Output voltage 2 13.8V DC
    Number of outputs 2
    Kind of power supply open
