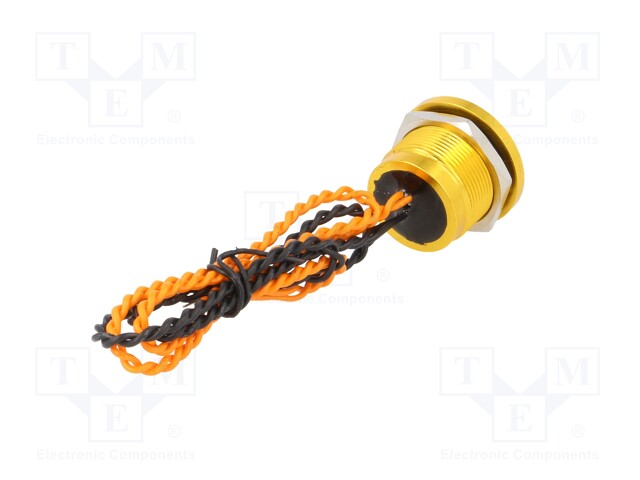

Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PS223P10YGD1O12VT
    Tootja: ONPOW
    Tootja tootekood: PS223P10YGD1O12VT
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Body material
    • Mounting hole diameter
    • Body colour
    • Switched voltage
    • Switched voltage
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Contact current max.

    18,30 € 18,30 € (KM-TA) 18.3 EUR

    18,30 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC

    Operating temperature -40...75°C
    IP rating IP68
    Type of switch piezoelectric
    Number of positions 2
    Leads 30mm leads
    Body material aluminium
    Mounting hole diameter Ø22mm
    Body colour gold
    Switched voltage ≤ 24V AC, ≤ 24V DC
    Backlight colour orange
    Illumination ring, LED
    Electrical life 50000000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 200mA / 24V DC
    AC contacts rating @R 200mA / 24V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 6N
    Button shape flat
    Contact current max. 200mA
