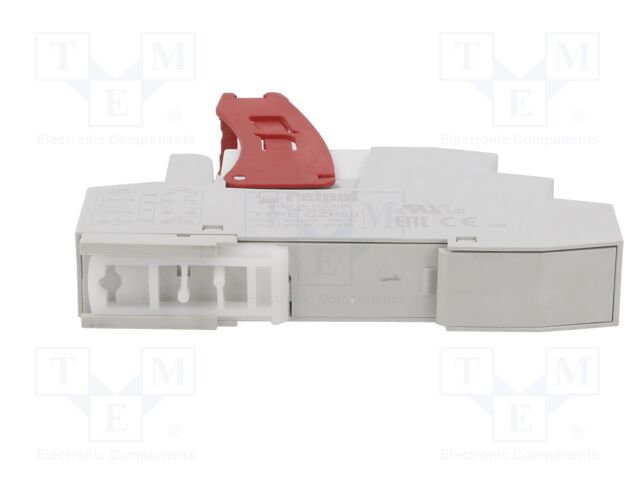

Relay: interface; DPDT; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PI85-024DC-M41G-MS-2011
    Tootja: RELPOL
    Tootja tootekood: PI85-024DC-M41G-MS-2011
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Flammability rating
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Conform to the norm
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time

    15,16 € 15,16 € (KM-TA) 15.16 EUR

    15,16 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: interface; DPDT; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC

    Mounting for DIN rail mounting
    Max. operating current 16A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgSnO<sub>2</sub>
    Flammability rating UL94V-0
    Body dimensions 15.6x61x80mm
    Kit contents ejector, socket, indication module, RM84 relay
    Switched voltage ≤ 300V AC, ≤ 300V DC
    Switching capacity 2kVA
    Conform to the norm EN 50155
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series PI84T
    Operate time 7ms
    Release time 3ms
