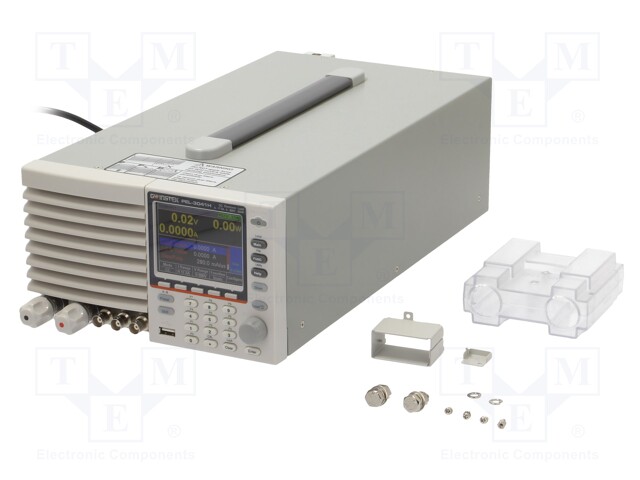

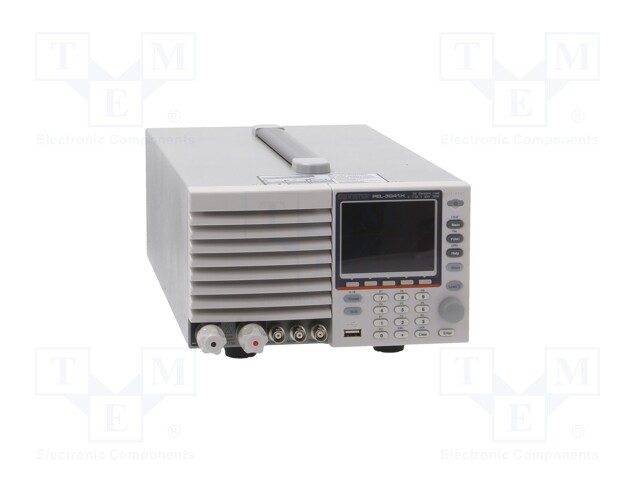

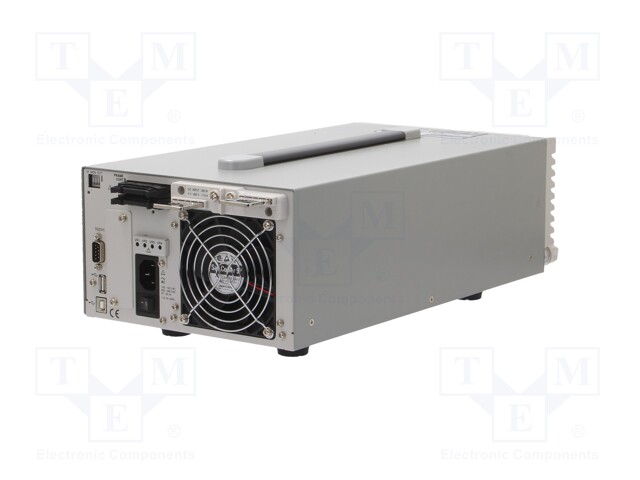

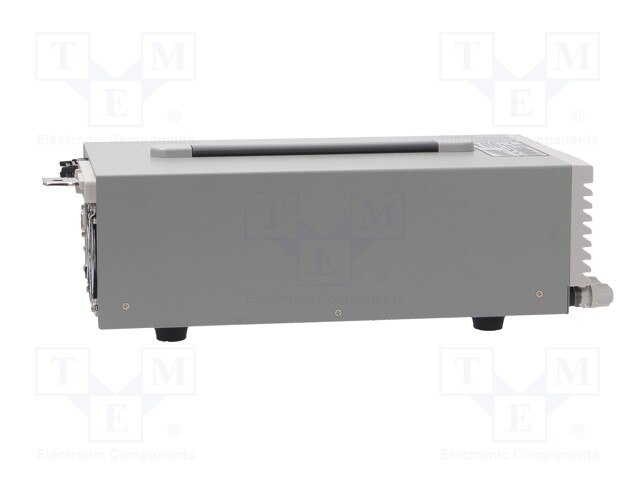

Device: electronic load; 0÷800V; 17.5A; 350W; 213.8x124x400.5mm
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PEL-3041H
Tootja: GW INSTEK
Tootja tootekood: PEL-3041H
Product downloads
Spetsifikatsioon tootele Device: electronic load; 0÷800V; 17.5A; 350W; 213.8x124x400.5mm
| Supply voltage | 100...240V AC |
| Operating voltage | 0...800V |
| Interface | RS232, USB 2.0 host, GPIB/LAN (option) |
| Operating current | 17.5A |
| Dimensions | 213.8x124x400.5mm |
| Kind of display used | color, LCD 3,5" |
| Operating modes | constant current+voltage, constant power, constant power+voltage, constant resistance, constant resistance+voltage |
| Maximum power | 350W |
