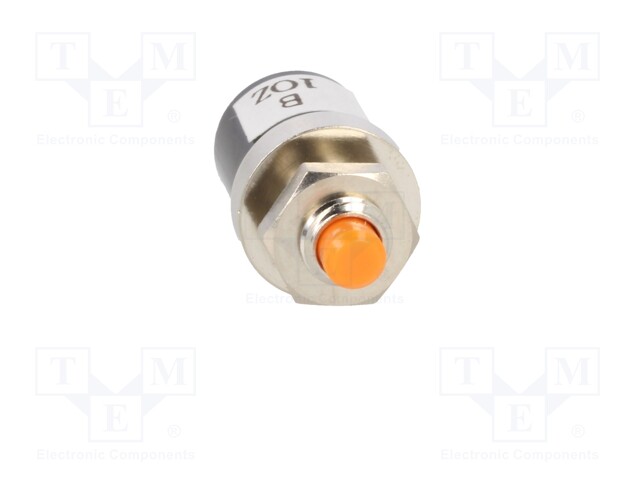

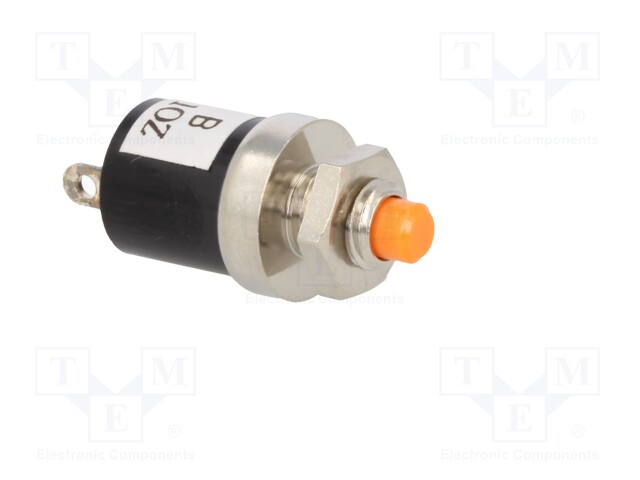

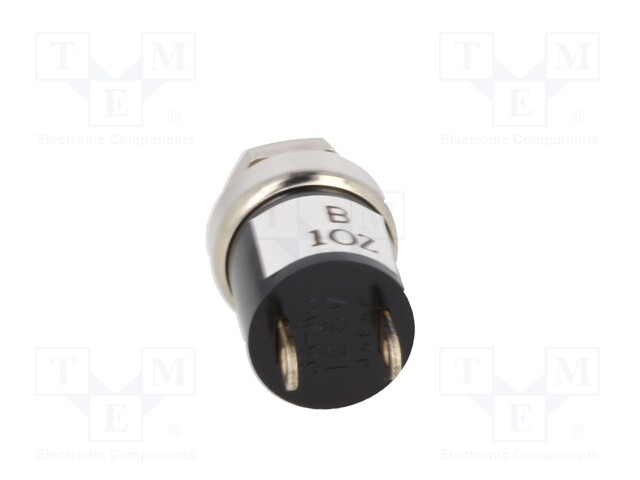

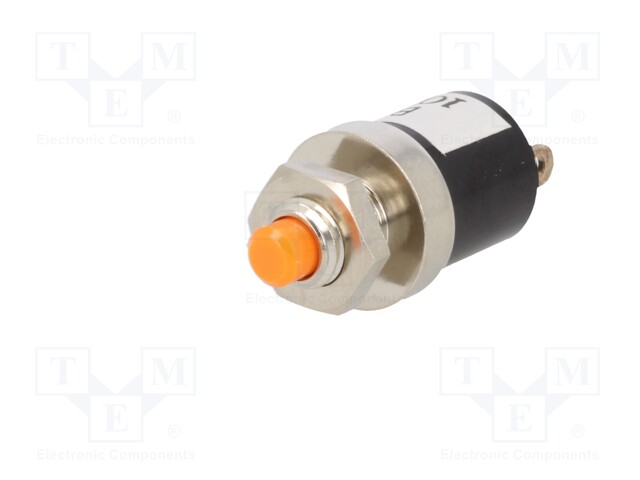

Switch: push-button; Pos: 2; SPST; 3A/125VAC; 2A/24VDC; ON-(ON)

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MSP 103 B
    Tootja: KNITTER
    Tootja tootekood: MSP 103 B
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Terminal pitch
    • Body colour
    • Mechanical durability
    • Illumination
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape
    • Button shape
    • Button height
    • Button marking

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPST; 3A/125VAC; 2A/24VDC; ON-(ON)

    Mounting screw
    Operating temperature -45...110°C
    Type of switch push-button
    Contact plating silver plated
    Number of positions 2
    Leads flat pins
    Max. contact resistance 30mΩ
    Terminal pitch 6mm
    Body colour black
    Mechanical durability 30000cycles
    Illumination none
    Contacts configuration SPST
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 3A / 125V AC
    Switching method ON-(ON)
    Stable positions number 1
    Actuator colour orange
    Button shape high, round
    Button shape round
    Button height 2.5mm
    Button marking blank
