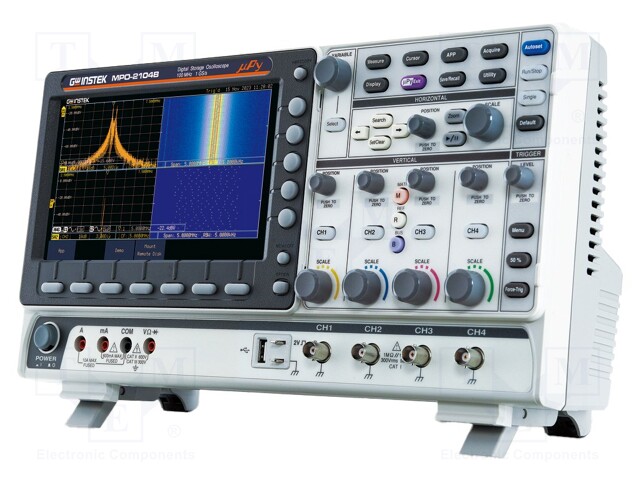

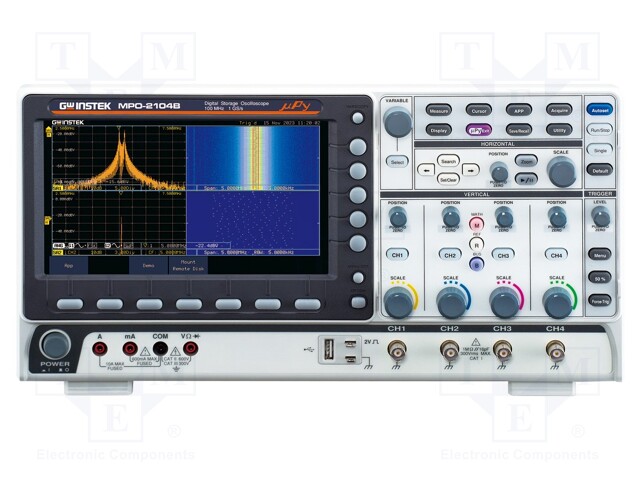

Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 10pts/ch; LCD TFT 8"

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MPO-2104B
    Tootja: GW INSTEK
    Tootja tootekood: MPO-2104B
    • Supply voltage
    • Number of channels
    • Interface
    • Interface
    • Interface
    • Interface
    • Dimensions
    • Display resolution
    • Max. input voltage
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Sampling
    • Type of oscilloscope
    • Vertical resolution
    • Input coupling
    • Trigger coupling
    • Trigger coupling
    • Trigger coupling
    • Trigger coupling
    • Trigger coupling

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 10pts/ch; LCD TFT 8"

    Supply voltage 100...240V AC
    Number of channels 4
    Interface Go/NoGo BNC, LAN, USB 2.0 host, USB device
    Dimensions 384x208x127.3mm
    Display resolution 800x480
    Max. input voltage 300V
    Trigger bus, falling-edge, impulse width, rising-edge, video signal, with delay
    Measuring instrument features mask testing
    Standard equipment 2x BNC-BNC cable, mains cable, oscilloscope probe (1 per channel), test leads, test leads with crocodile clips
    Sampling 1Gsps
    Type of oscilloscope digital
    Vertical resolution 8bit
    Input coupling AC, DC, GND
    Trigger coupling AC, DC, highpass, lowpass, noise
