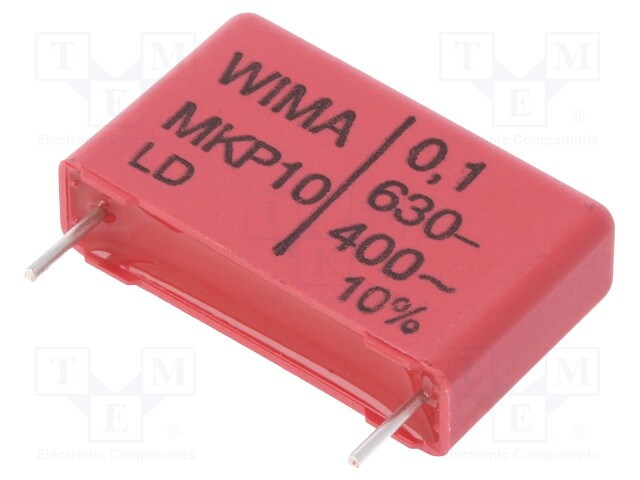

Capacitor: polypropylene; 100nF; 22.5mm; ±10%; 26.5x6x15mm; 630VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MKP1J031005D00KSSD
    Tootja: WIMA
    Tootja tootekood: MKP1J031005D00KSSD
    • Mounting
    • Operating temperature
    • Tolerance
    • Kind of package
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Capacitor application
    • Lead length
    • Capacitors features
    • Capacitors features
    • Climate class
    • Pulse resistance

    1,94 € 1,94 € (KM-TA) 1.94 EUR

    1,94 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 100nF; 22.5mm; ±10%; 26.5x6x15mm; 630VDC

    Mounting THT
    Operating temperature -55...110°C
    Tolerance ±10%
    Kind of package cardboard packaging
    Terminal pitch 22.5mm
    Flammability rating UL94V-0
    Body dimensions 26.5x6x15mm
    Max. operating voltage 400V AC, 630V DC
    Capacitance 100nF
    Type of capacitor polypropylene
    Capacitor application audio equipment, impulse circuits
    Lead length 6mm
    Capacitors features low dielectric loss factor, self-healing feature
    Climate class 55/100/56
    Pulse resistance 1.15kV/μs
