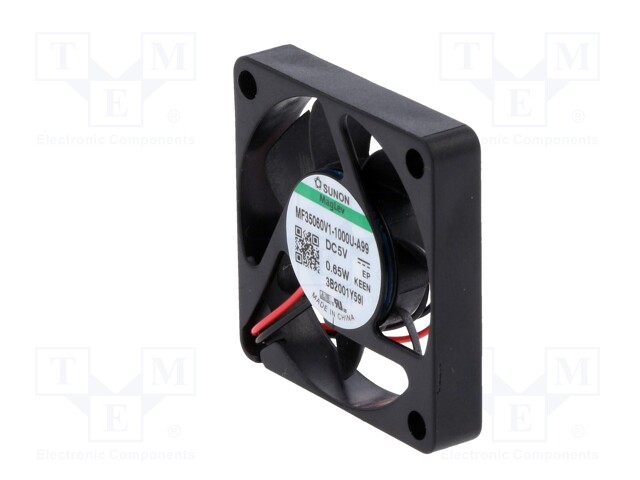

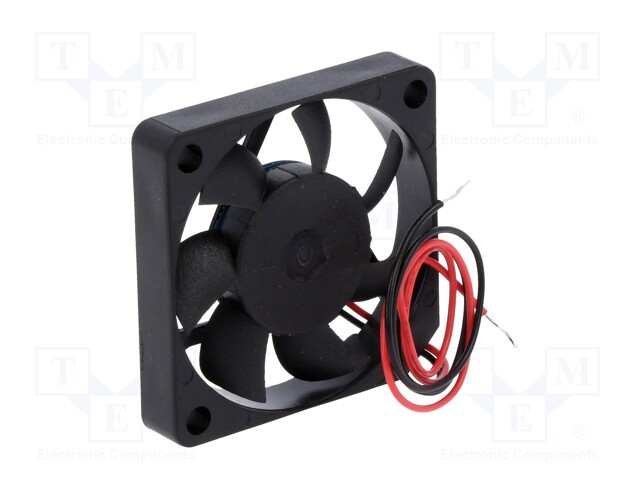

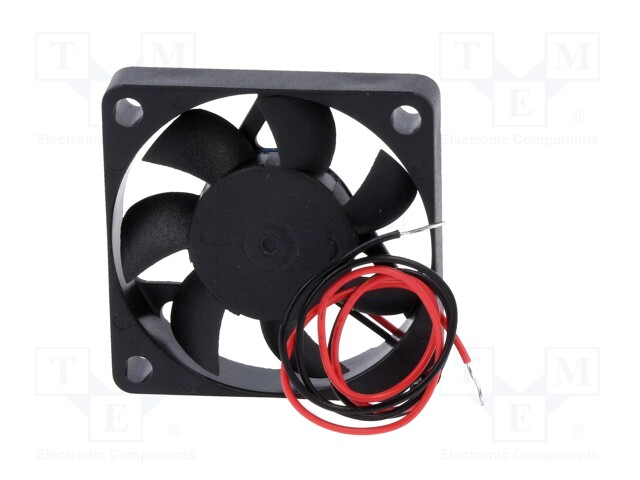

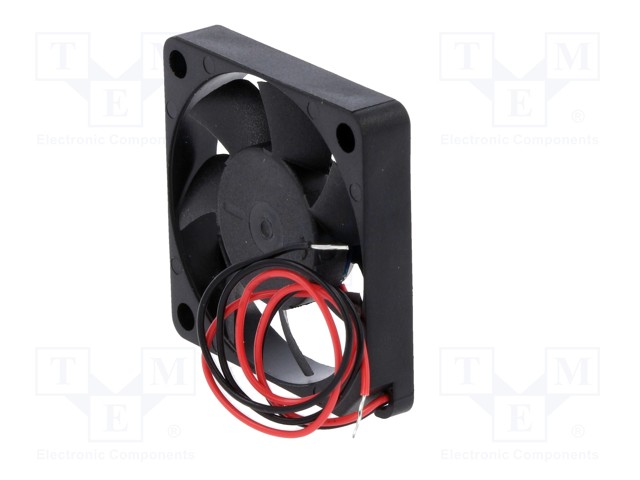

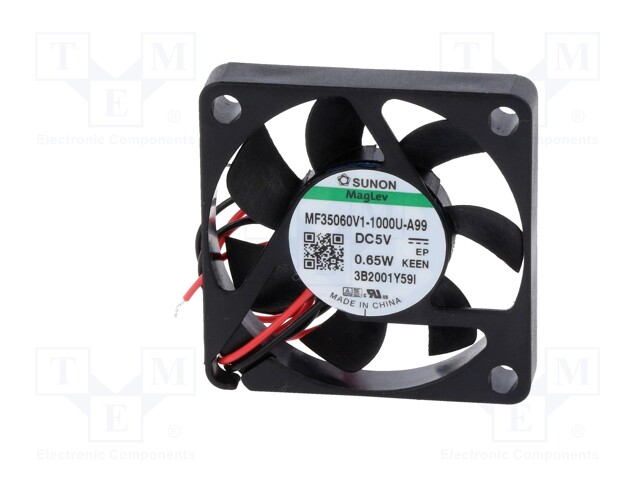

Fan: DC; axial; 5VDC; 35x35x6mm; 9.35m3/h; 26dBA; Vapo; 7600rpm

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: MF35060V1-1000U-A99
Tootja: SUNON
Tootja tootekood: MF35060V1-1000U-A99
  • Supply voltage
  • Operating temperature
  • Enclosure material
  • Leads
  • Flammability rating
  • Cable length
  • Current rating
  • Fan efficiency
  • Power consumption
  • Additional functions
  • Rotational rate/speed
  • Fan motor
  • Fan dimensions
  • Kind of Bearing
  • Min. insulation resistance
  • Impeller material
  • Kind of fan
  • Insulation class
  • Type of fan
  • Noise level

11,25 € 11,25 € (KM-TA) 11.25 EUR

11,25 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Fan: DC; axial; 5VDC; 35x35x6mm; 9.35m3/h; 26dBA; Vapo; 7600rpm

Supply voltage 5V DC
Operating temperature -10...70°C
Enclosure material thermoplastic
Leads 2 leads
Flammability rating UL94V-0
Cable length 140mm
Current rating 120mA
Fan efficiency 9.35m<sup>3</sup>/h
Power consumption 600mW
Additional functions Autorestart
Rotational rate/speed 7600rpm
Fan motor brushless DC motor
Fan dimensions 35x35x6mm
Kind of Bearing Vapo
Min. insulation resistance 10MΩ
Impeller material thermoplastic
Kind of fan axial
Insulation class A
Type of fan DC
Noise level 26dBA
