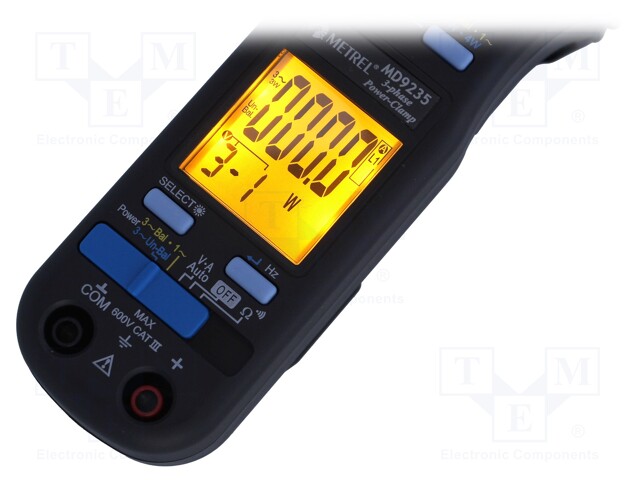

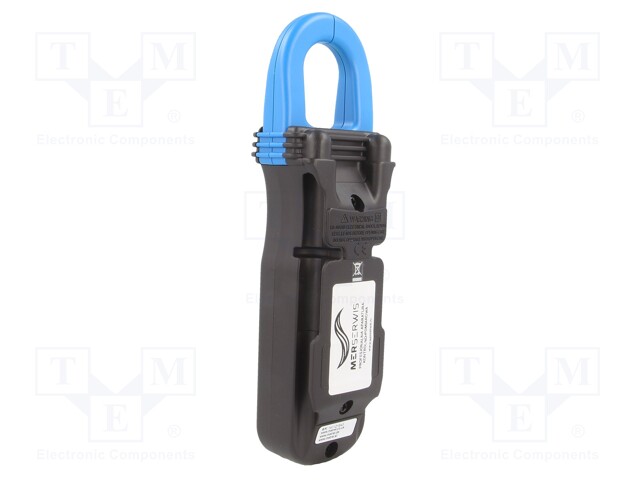

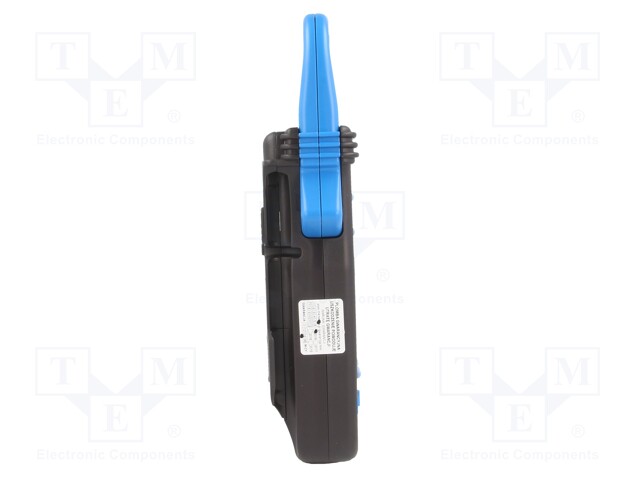

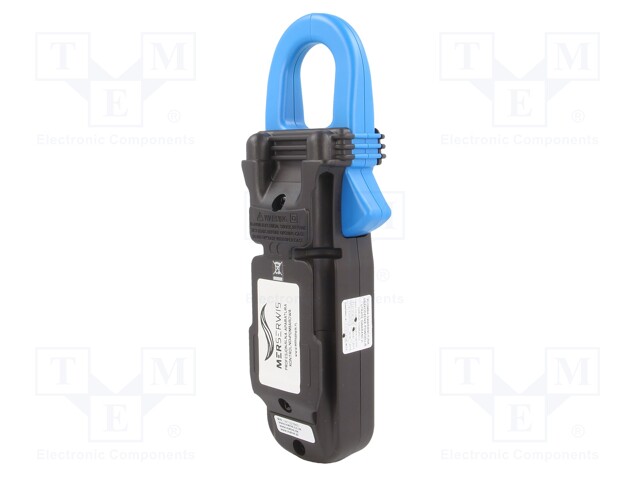

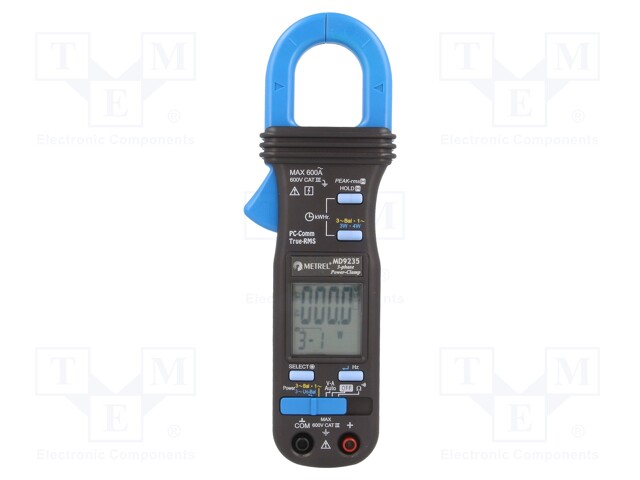

AC/DC digital clamp meter; Øcable: 26mm; I AC: 40/400/600A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
MD9235
Tootja: METREL
Tootja tootekood: MD9235
Product downloads
Spetsifikatsioon tootele AC/DC digital clamp meter; Øcable: 26mm; I AC: 40/400/600A
| Dimensions | 189x78x40mm |
| Conform to the norm | CAT III 600V, EN 61010 |
| Measuring instrument features | function, HOLD function, kWh - measures and records energy consumption in 1- and 3-phase systems with blanced load |

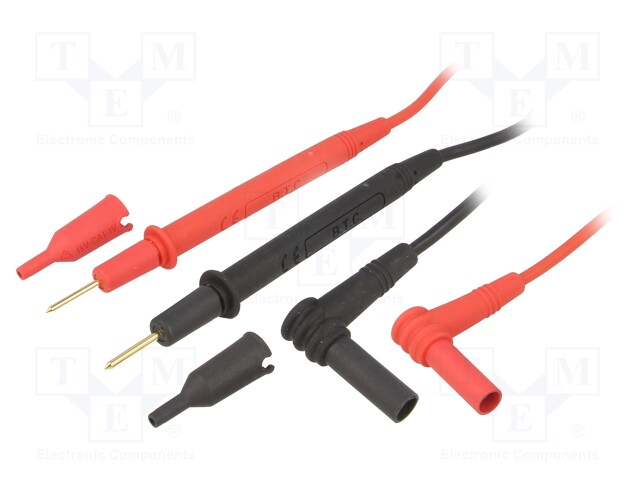

| Standard equipment | case, test leads ( 2pcs.), user's manual |
| Max. diameter of measured cable | 26mm |
| Measurement | AC current, AC voltage, active power, apparent power, DC voltage, frequency, power factor, reactive power, resistance |
| True effective value measurement | True RMS AC |
| Kind of meter | digital |
