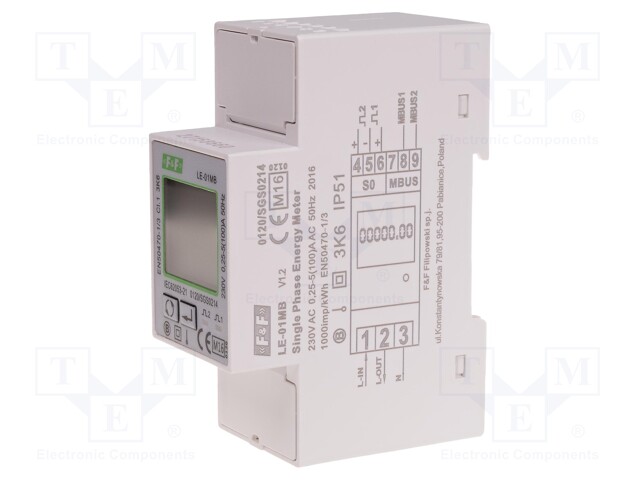

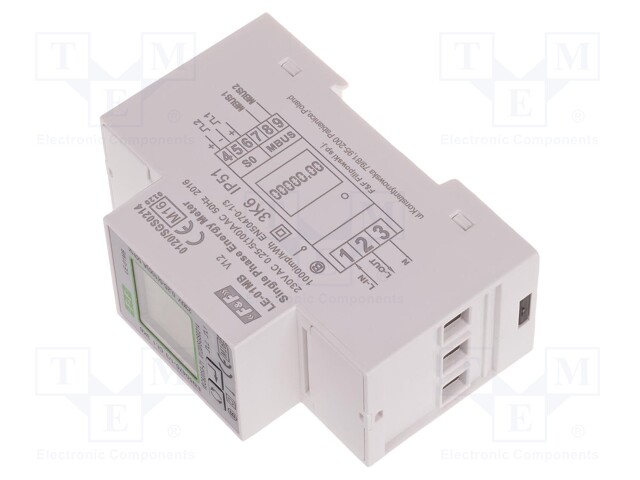

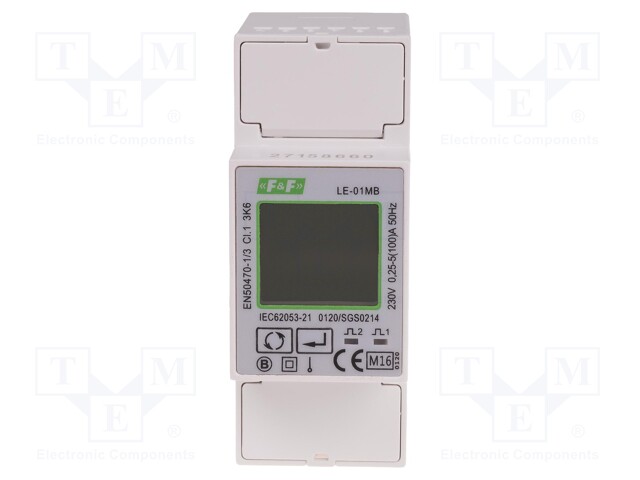

Electric energy meter; digital,mounting; for DIN rail mounting
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
LE-01MB
Tootja: F&F
Tootja tootekood: LE-01MB
Product downloads
Spetsifikatsioon tootele Electric energy meter; digital,mounting; for DIN rail mounting
| Mounting | for DIN rail mounting |
| Operating temperature | -25...55°C |
| IP rating | IP51 |
| Interface | M-Bus |
| Maximum current | 100A |
| Current rating | 5A |
| Kind of display used | LCD |
| Operating frequency | 50Hz |
| Kind of network | single-phase |
| Rated voltage | 230V |
| Output | pulse output SO x2 |
| Accuracy class | B |
| Measuring instrument features | MID certificate |
| Measurement | AC current, active energy, active power, AC voltage, apparent power, frequency, power factor, reactive energy, reactive power |
| Kind of meter | digital, mounting |
