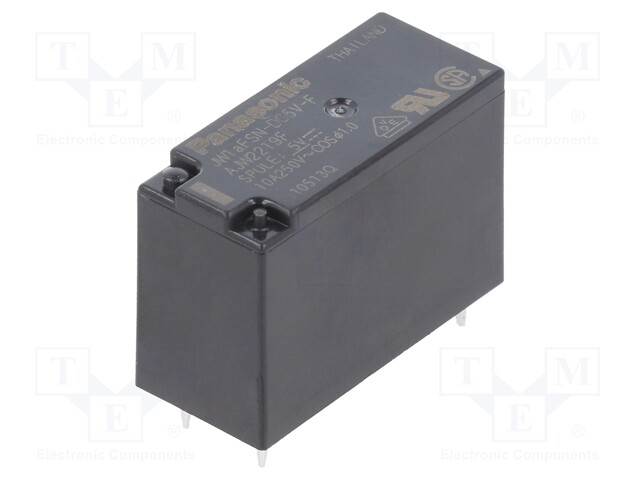

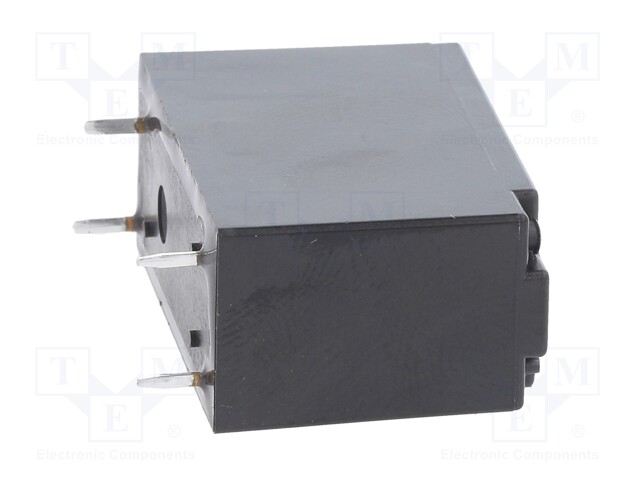

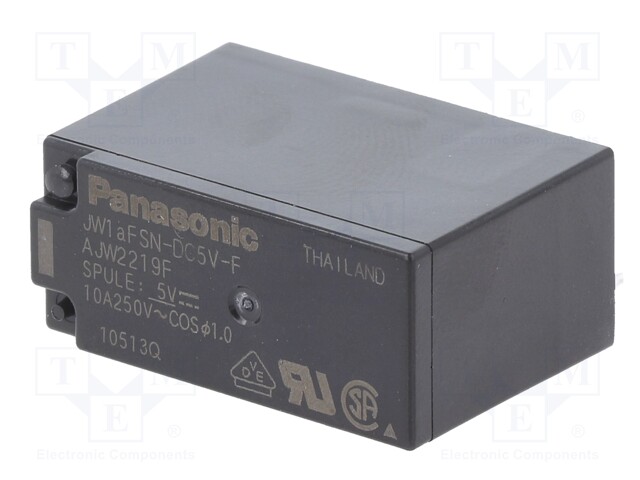

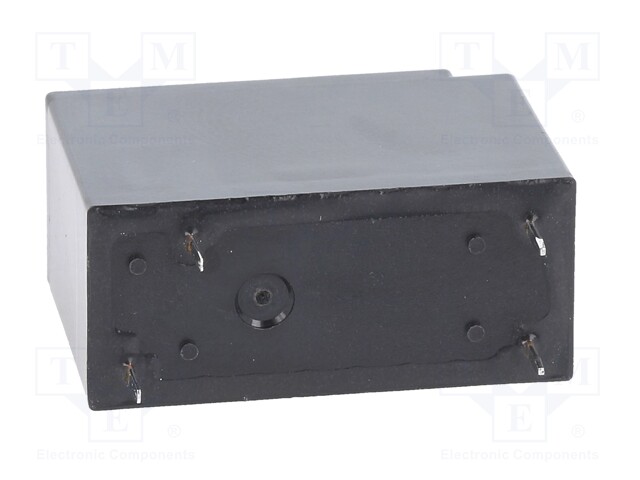

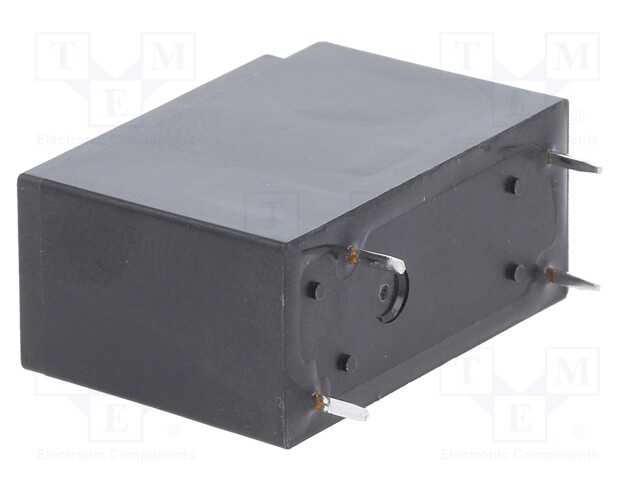

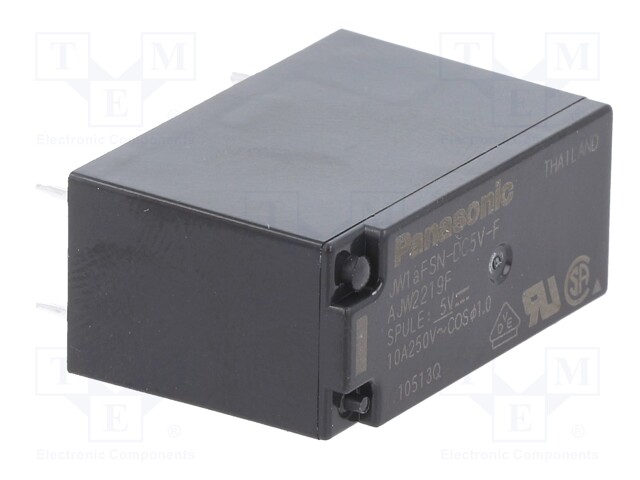

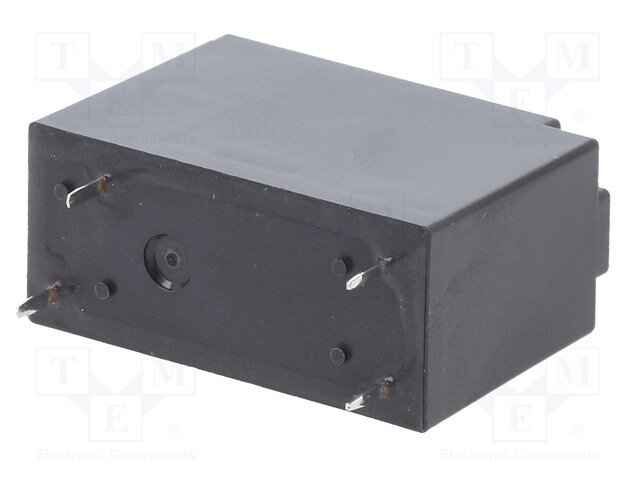

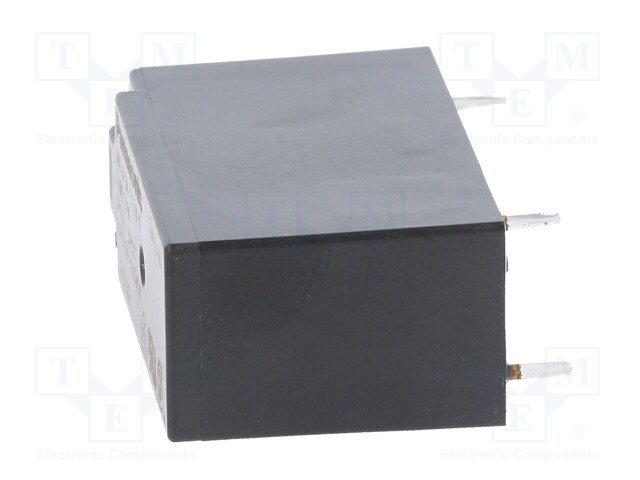

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 10A/250VAC; 47Ω

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: JW1AFSN5FT
Tootja: PANASONIC
Tootja tootekood: JW1AFSN5FT
  • Mounting
  • Mounting
  • Operating temperature
  • Contact material
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil voltage min.
  • Coil power consumption
  • Coil current

3,80 € 3,80 € (KM-TA) 3.8000000000000003 EUR

3,80 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 10A/250VAC; 47Ω

Mounting PCB, socket
Operating temperature -40...85°C
Contact material AgSnO<sub>2</sub>
Switched voltage ≤ 30V DC, ≤ 250V AC
Coil resistance 47Ω
Rated coil voltage 5V DC
Contacts configuration SPST-NO
DC contacts rating @R 10A / 30V DC
AC contacts rating @R 10A / 250V AC
Contact current max. 10A
Relay variant miniature
Type of relay electromagnetic
Coil voltage min. 3.5V DC
Coil power consumption 530mW
Coil current 106mA
