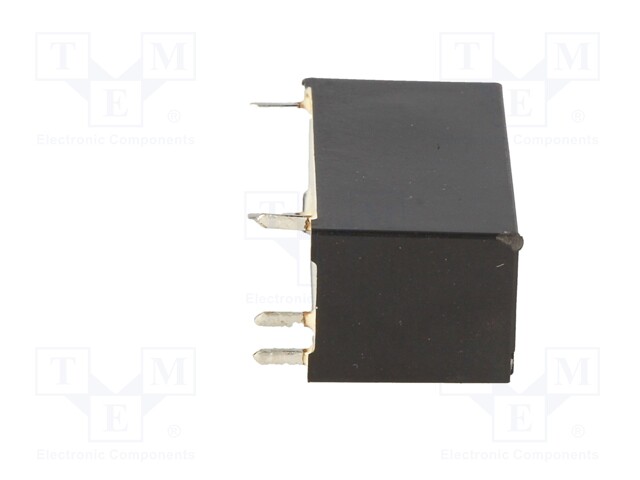

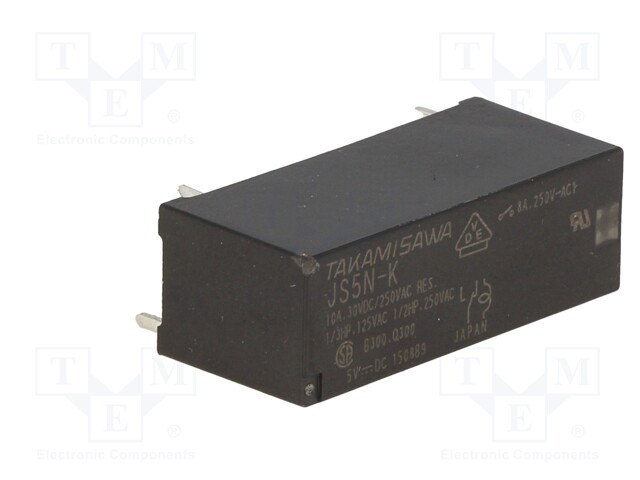

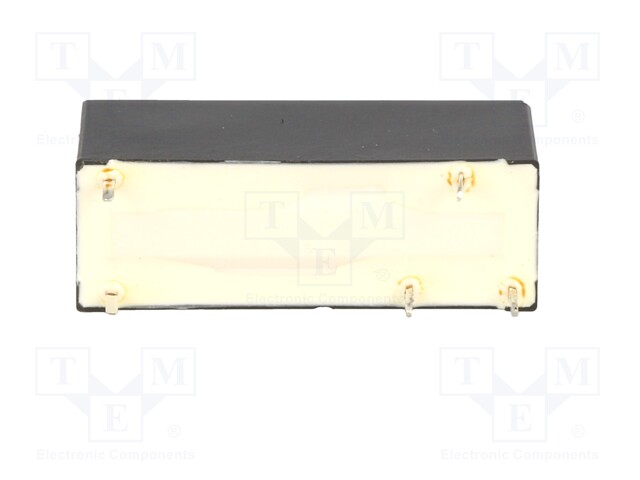

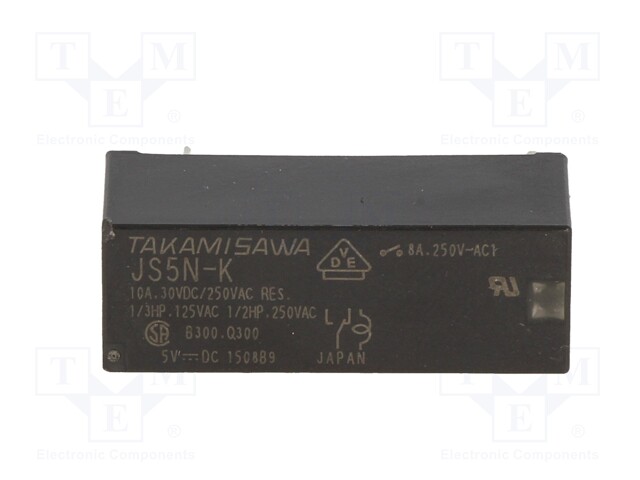

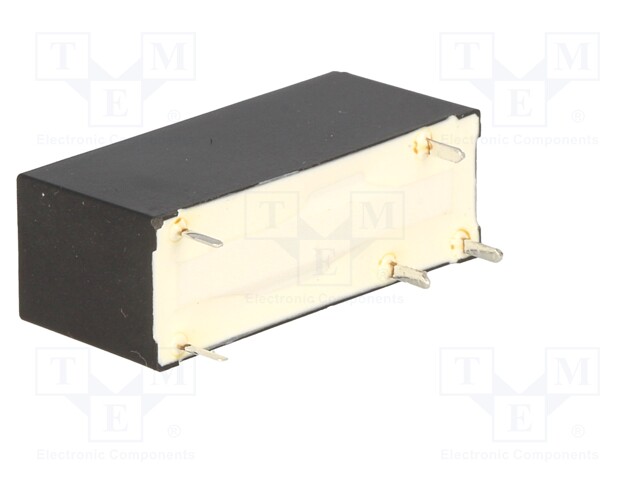

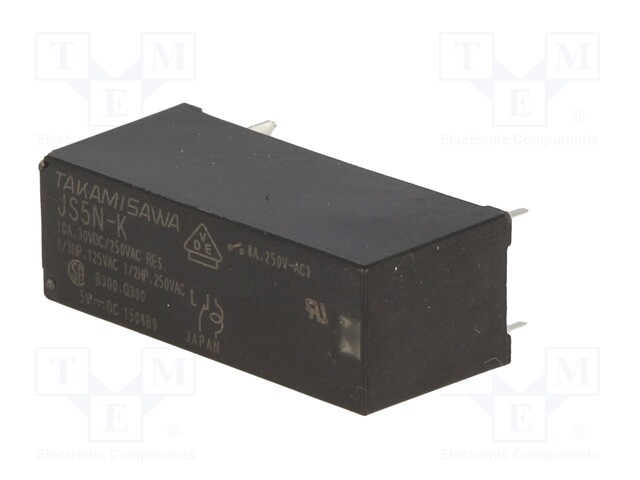

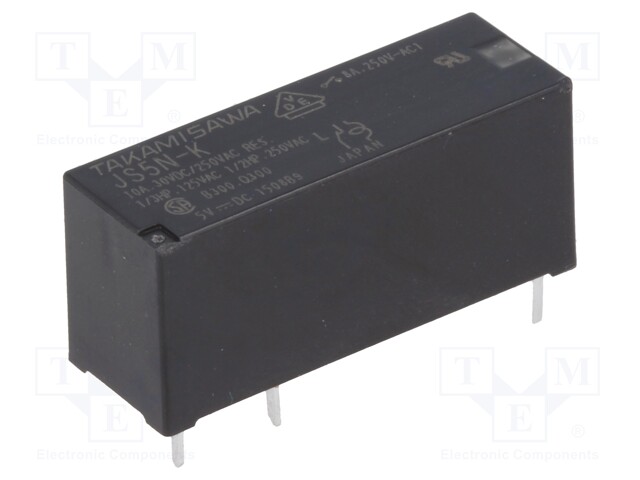

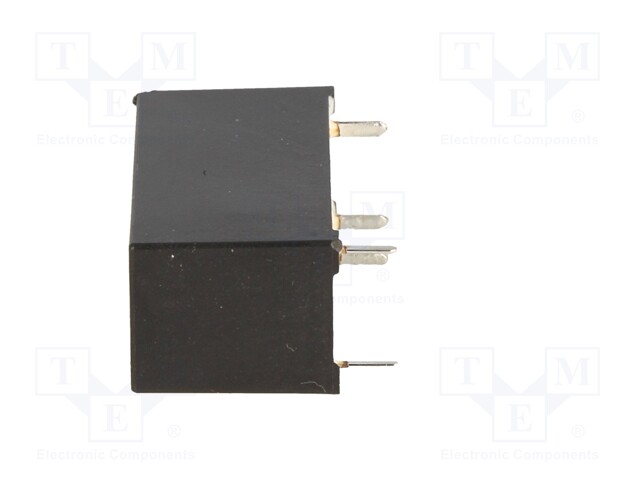

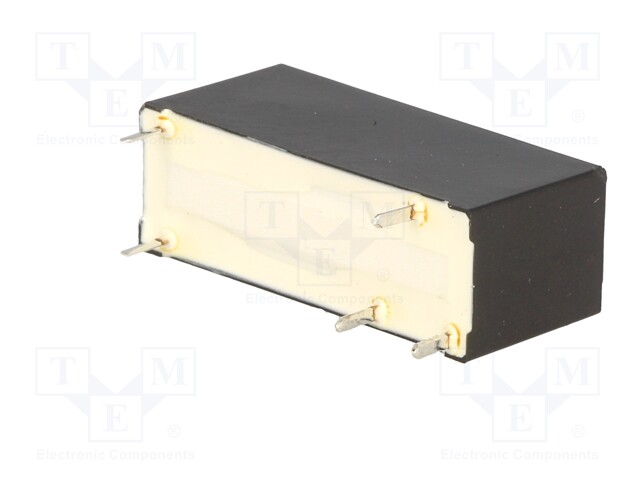

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC; 8A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: JS-5N-K
    Tootja: FUJITSU
    Tootja tootekood: JS-5N-K
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Operate time
    • Release time

    3,03 € 3,03 € (KM-TA) 3.0300000000000002 EUR

    3,03 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A/250VAC; 8A/24VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 3.2mm
    Body dimensions 29x10x12.5mm
    Switched voltage ≤ 150V DC, ≤ 400V AC
    Coil resistance 112Ω
    Rated coil voltage 5V DC

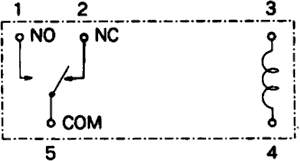

    Contacts configuration SPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 11.8V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Relay series JS
    Operate time 10ms
    Release time 5ms
