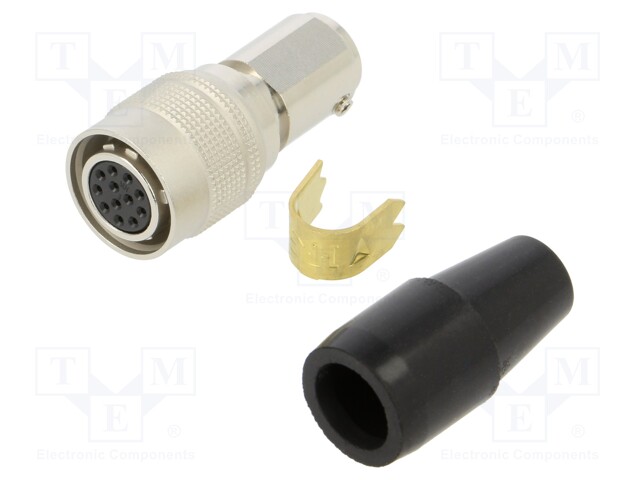

Connector: circular; HR10; Locking: push-pull; plug; female; 2A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: HR10A-10P-12S(74)-1
    Tootja: HIROSE
    Tootja tootekood: HR10A-10P-12S(74)
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Number of pins
    • Current rating
    • Rated voltage
    • Rated voltage
    • Locking system
    • Connector series
    • Spatial orientation
    • Max. wire diameter

    17,18 € 17,18 € (KM-TA) 17.18 EUR

    17,18 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Connector: circular; HR10; Locking: push-pull; plug; female; 2A

    Electrical mounting soldering
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Contact plating silver plated
    Type of connector circular
    Number of pins 12
    Current rating 2A
    Rated voltage 100V AC, 140V DC
    Locking system push-pull
    Connector series HR10
    Spatial orientation straight
    Max. wire diameter 7mm
