Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GQ22-11WE/RG/24V
    Tootja: ONPOW
    Tootja tootekood: GQ22-11WE/RG/24V
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Illumination voltage
    • Ring shape

    16,62 € 16,62 € (KM-TA) 16.62 EUR

    16,62 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 2A/36VDC; IP67

    Operating temperature -20...55°C
    IP rating IP67
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance 50mΩ
    Body material stainless steel

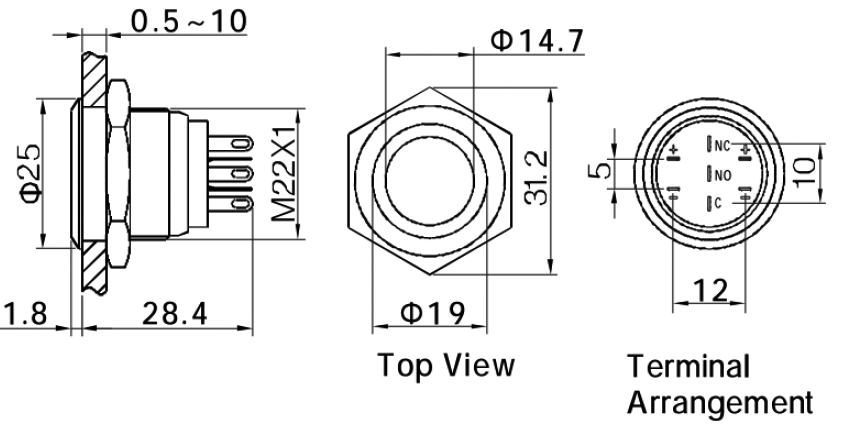

    Mounting hole diameter Ø22mm
    Body colour silver
    Mechanical durability 1000000cycles
    Backlight colour red/green
    Illumination ring, LED
    Electrical life 50000cycles
    Test voltage 1.5kV
    Contacts configuration SPDT
    DC contacts rating @R 2A / 36V DC
    AC contacts rating @R 500mA / 220V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 4N
    Button shape flat
    Illumination voltage 24V
    Ring shape rounded
