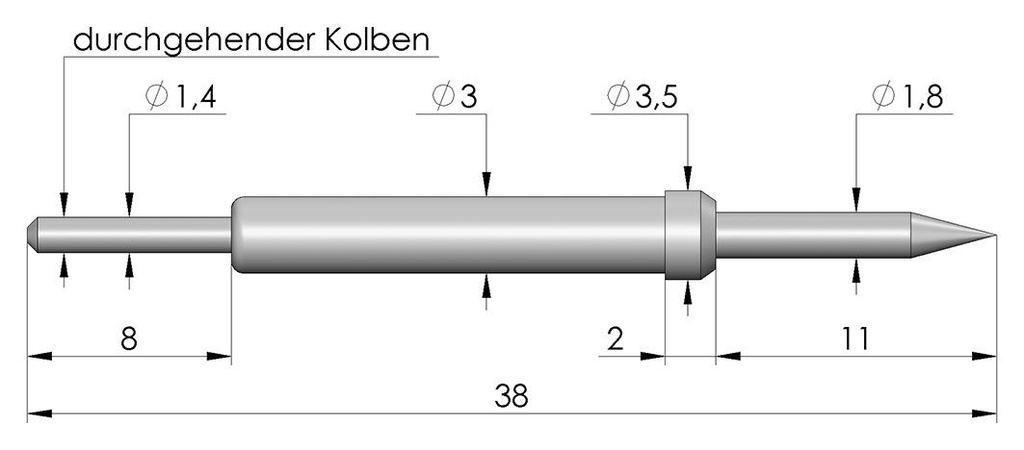

Test needle; Operational spring compression: 5.6mm; 5A; Ø: 1.8mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-503 201 180 R 1502
    Tootja: INGUN
    Tootja tootekood: GKS-503 201 180 R 1502
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression
    • Blade tip shape

    4,11 € 4,11 € (KM-TA) 4.11 EUR

    4,11 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 5.6mm; 5A; Ø: 1.8mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating rhodium plated
    Contact material steel
    Max. contact resistance 30mΩ
    Length 38mm
    Current rating 5A
    Tip diameter 1.8mm
    Type of test accessories test probe
    Maksimum spring compression 7mm
    Blade tip shape sharp
