Test needle; Operational spring compression: 4.3mm; 5A; Ø: 0.9mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-100 291 090 A 3000 E
    Tootja: INGUN
    Tootja tootekood: GKS-100 291 090 A 3000 E
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression
    • Blade tip shape

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4.3mm; 5A; Ø: 0.9mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance 20mΩ
    Current rating 5A

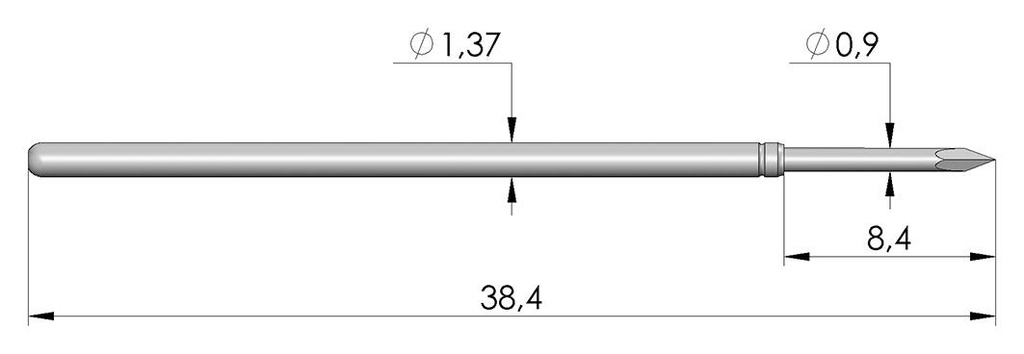

    Tip diameter 900µm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm

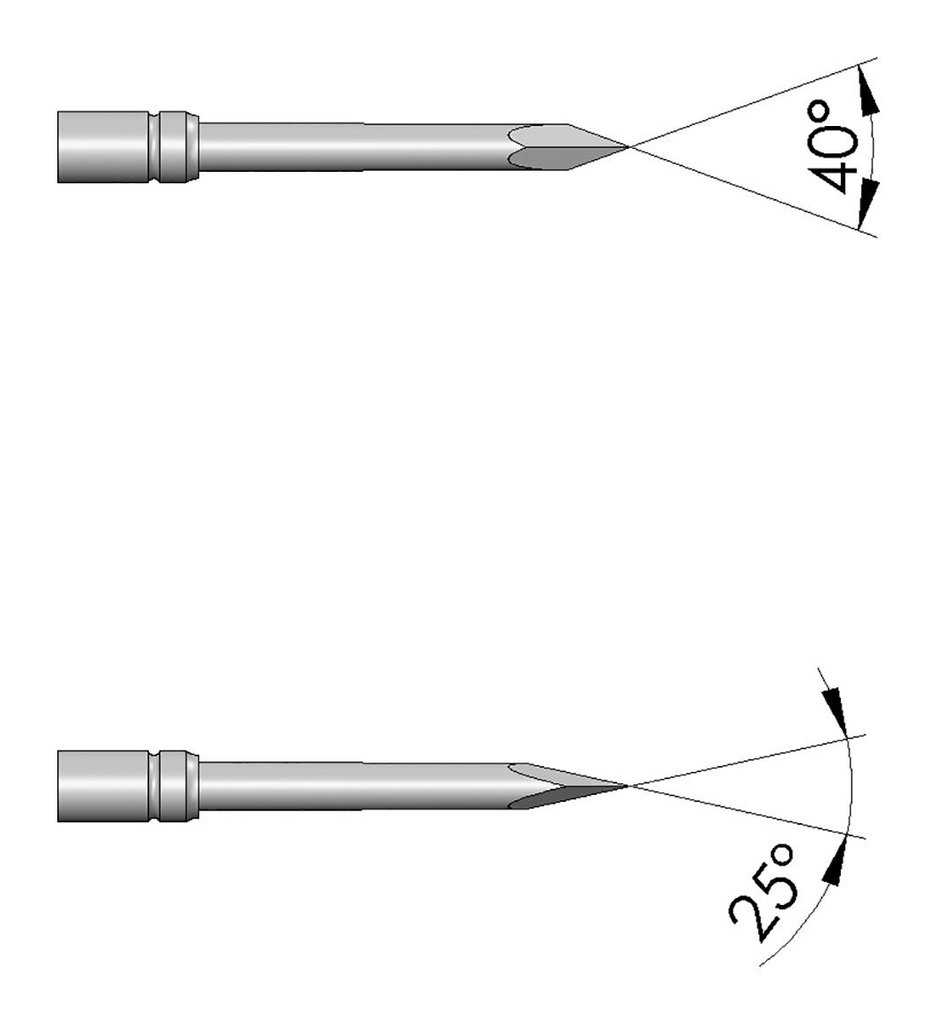

    Blade tip shape sharp
